| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,300 pcs
|
6300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Storage Temperature |

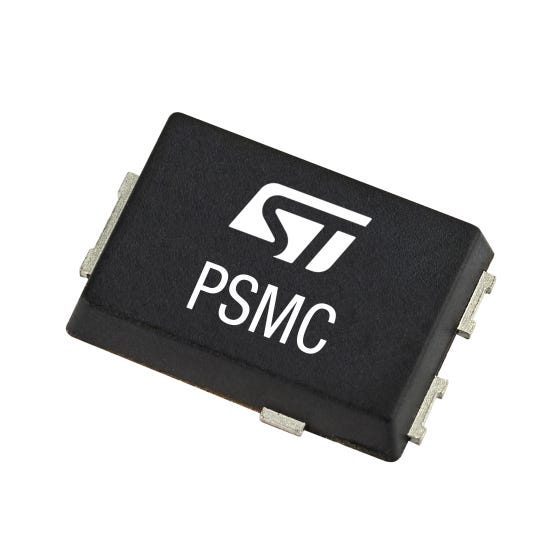

The STPST8H100SF is a high-performance Power Schottky Trench Diode manufactured by STMicroelectronics. It is designed for applications requiring efficient power handling, featuring a reverse voltage rating of 100V and a maximum average rectified forward current of 8A.
This diode exhibits a low forward voltage drop, with a maximum of 0.7V at 8A and 0.55V at 1A, contributing to reduced power loss and improved system efficiency. The reverse leakage current is kept to a minimum, with a maximum of 1mA at 100V and 0.5mA at 75V.
Operating across a wide temperature range from -40°C to 150°C, the STPST8H100SF is suitable for demanding environments. Its junction and storage temperatures are also rated up to 150°C, ensuring reliability under various operating conditions. The component comes in a standard package of 2500 units.
This Schottky diode is ideal for power supply circuits, rectification, and general-purpose switching applications where high current and voltage ratings are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 100V.
The maximum average rectified current is 8A.
The forward voltage at 1A is 0.55V.
The forward voltage at 8A is 0.7V.
The reverse leakage current at Vr = 100V is 1mA.
The operating temperature range is from -40°C to 150°C.
