Mfr Part #:

STPST2H100AF

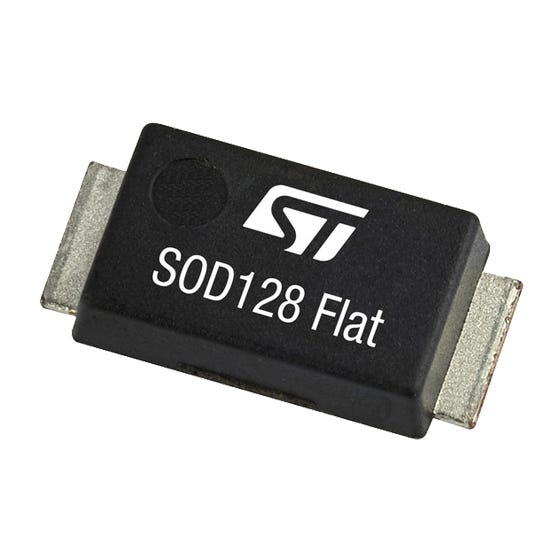

The STPST2H100AF is a 100V, 2A Power Schottky Trench Diode from STMicroelectronics. It utilizes Schottky technology and Trench construction for efficient power management.

✓ Total Stock: 27,300 pcs

$ Price Range: $0.55

STPST2H100AF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	27,300 pcs On Request	27300 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

STPST2H100AF Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Unclassified
Manufacturer Name	STMicroelectronics

View Similar Products (0)

STPST2H100AF Description

Short technical summary and product information.

The STPST2H100AF is a power Schottky diode manufactured by STMicroelectronics. This component features a 100V reverse voltage rating and a 2A forward current capability, making it suitable for various power applications.

Utilizing advanced Schottky and Trench technologies, this diode offers efficient performance characteristics. The Schottky barrier provides low forward voltage drop, while the Trench structure enhances breakdown voltage and reduces leakage current. These attributes contribute to improved power efficiency and thermal management in electronic designs.

Designed for robust operation, the STPST2H100AF is a reliable choice for power rectification and switching applications. Its specifications make it a versatile component for engineers seeking high-performance diode solutions.

STPST2H100AF Quick Information

Product Type: Power Schottky Diode

Series: STPST2H100AF

Canonical Name: STPST2H100AF Power Schottky Trench Diode

Subcategory: RF Diode

STPST2H100AF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

STPST2H100AF Estimated Pricing

Qty	Low	High
1+	$0.55	$0.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

STPST2H100AF Features

100V reverse voltage rating.
2A average rectified forward current.
Schottky technology for low forward voltage.
Trench construction for enhanced performance.
Suitable for power rectification applications.

STPST2H100AF Applications

Power supply rectification circuits.
Switching power applications.
General purpose power management.
Automotive power electronics.

STPST2H100AF FAQs

3 frequently asked questions generated from this part’s specifications.

What is the maximum reverse voltage for the STPST2H100AF?

The maximum reverse voltage is 100V.

What is the forward current rating of the STPST2H100AF?

The forward current rating is 2A.

What technology does the STPST2H100AF diode use?

The STPST2H100AF uses Schottky and Trench technologies.
