| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,407,500 pcs
|
4407500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,383 pcs
|
1383 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (DC) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

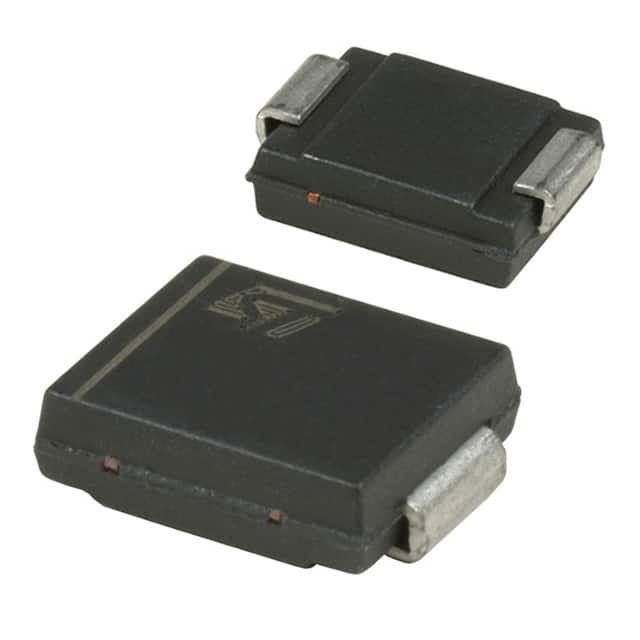

The STPS4S200S is a Schottky rectifier diode manufactured by STMicroelectronics. It features a maximum reverse voltage of 200V and an average rectified current rating of 4A. The forward voltage is specified at a maximum of 870mV at a forward current of 4A, enabling efficient low-voltage rectification.
This diode utilizes Schottky technology for fast switching performance, with a reverse recovery time of less than 500ns when the forward current exceeds 200mA. The device is designed for surface-mount assembly and is housed in a DO-214AB (SMC) package, which is suitable for automated pick-and-place processes.
The maximum junction operating temperature is 175°C, allowing reliable operation in high-temperature environments. Typical applications include power supply rectification, polarity protection, and freewheeling diodes in switching converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.40 | $0.40 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.28 | $0.28 |
| 2,500+ | $0.25 | $0.25 |
| 5,000+ | $0.22 | $0.22 |
| 10,000+ | $0.20 | $0.20 |
| 25,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 200V.
The maximum forward voltage is 870mV at a forward current of 4A.
The average rectified current is 4A.
The reverse recovery time is less than 500ns when the forward current exceeds 200mA.
The maximum junction operating temperature is 175°C.
It is available in a DO-214AB (SMC) surface-mount package.
It is listed as RoHS3 compliant, but this information is unverified.
