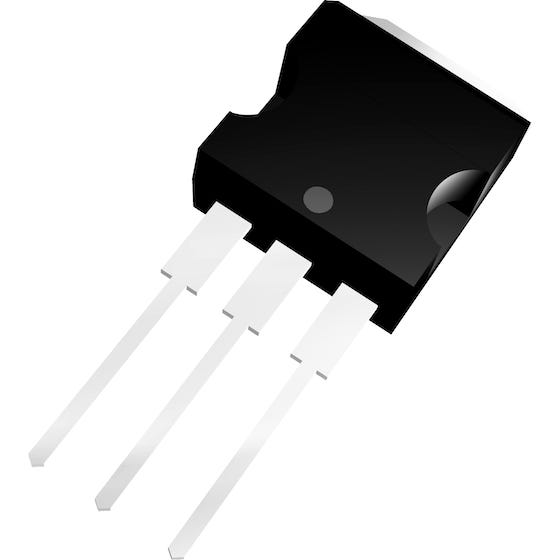

The STPS41H100CR is a Schottky diode array from STMicroelectronics featuring a 1 pair common cathode configuration. It is designed for high-efficiency rectification and fast switching applications. Each diode is rated for an average rectified current of 10A at 100V reverse voltage, with a low forward voltage drop of 800mV at 20A forward current. The device offers fast recovery performance with a recovery time of 500ns or less at currents above 200mA.
The diode array is housed in a through-hole TO-262-3 (I2PAK) package, suitable for automated insertion. It can operate at junction temperatures up to 175°C, making it robust for demanding thermal environments. The common cathode pair simplifies PCB layout for center-tapped rectifier designs.
Typical applications include power supply output rectification, freewheeling diodes in DC-DC converters, and reverse polarity protection circuits. The low forward voltage drop minimizes power dissipation, improving overall system efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.82 | $2.82 |
| 10+ | $1.82 | $1.82 |
| 100+ | $1.25 | $1.25 |
| 500+ | $1.03 | $1.03 |
| 1,000+ | $0.92 | $0.92 |
| 2,000+ | $0.86 | $0.86 |
| 5,000+ | $0.79 | $0.79 |
| 10,000+ | $0.76 | $0.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse voltage rating is 100V.
Each diode can handle 10A average rectified current.
The forward voltage drop is 800mV maximum at 20A forward current.
The diode has a fast recovery time of ≤500ns at currents above 200mA.
It is available in a through-hole TO-262-3 (I2PAK) package.
The maximum junction temperature is 175°C.
It is a 1 pair common cathode configuration.
