| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
186,000 pcs
|
186000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The STPS3H100AF is a Schottky rectifier diode manufactured by STMicroelectronics. It is designed for surface mount applications requiring high efficiency and fast switching.
The diode offers an average rectified current of 3A with a low forward voltage of 760 mV at 3A, minimizing conduction losses. It features a fast recovery time of ≤500 ns at >200 mA, making it suitable for high-frequency operation. The operating temperature range spans -40°C to 175°C, ensuring reliability in extreme conditions.

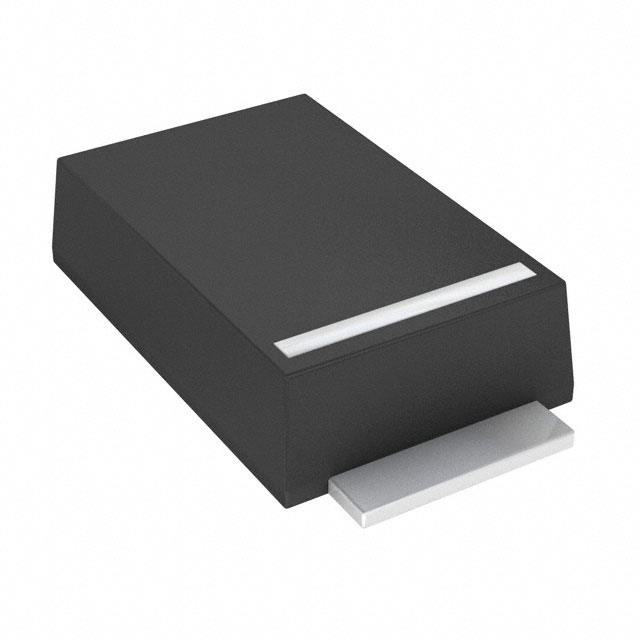

The device is housed in a compact SOD-128 (SOD128Flat) surface mount package, enabling space-efficient designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.48 | $0.48 |
| 100+ | $0.33 | $0.33 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.22 | $0.22 |
| 3,000+ | $0.19 | $0.19 |
| 6,000+ | $0.18 | $0.18 |
| 9,000+ | $0.15 | $0.15 |
| 24,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3A
760 mV at 3A
Fast recovery ≤500 ns, >200 mA
SOD-128 (SOD128Flat)
-40°C to 175°C
Schottky
Surface Mount
