| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,170 pcs
|
1170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Configuration | |
| Mounting Type | |
| Speed | |
| Supplier Device Package | |
| Technology |

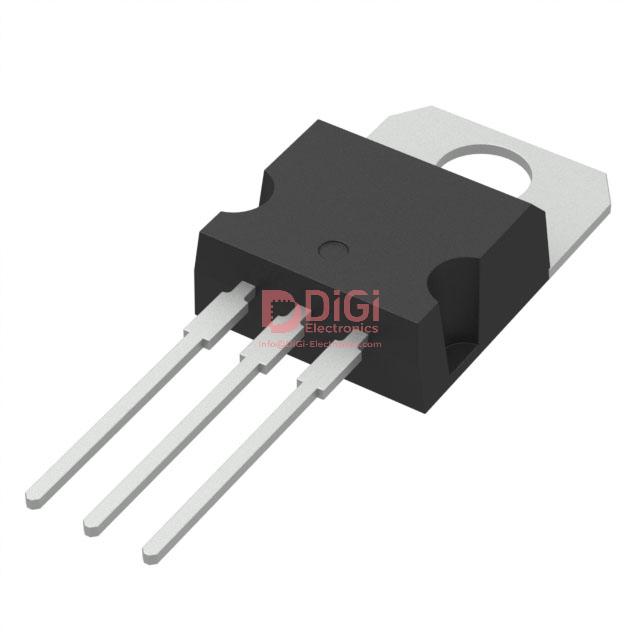

The STMicroelectronics STPS30L60CT is a Schottky rectifier diode array designed for power applications. It features a maximum reverse voltage rating of 60V and an average rectified current of 15A per diode.
This component utilizes Schottky technology, offering fast recovery times of less than 500ns. The forward voltage is a maximum of 600mV at 15A, and the reverse leakage current is 480 µA at 60V. The operating junction temperature can reach up to 150°C.
The diode configuration is a single pair of common cathode diodes. It is supplied in a Tube package and designed for through-hole mounting. The TO-220-3 package provides a robust solution for various electronic designs.
This rectifier is suitable for applications requiring efficient power conversion and fast switching characteristics. Its specifications make it a reliable choice for power supplies, voltage clamping, and other demanding electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage (Vr) for the STPS30L60CT is 60V.
The average rectified current (Io) per diode is 15A.
The maximum forward voltage (Vf) at 15A is 600mV.
The maximum operating junction temperature is 150°C.
The STPS30L60CT is supplied in a TO-220-3 package for through-hole mounting.
The STPS30L60CT features a 1 Pair Common Cathode diode configuration.
