| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,000 pcs
|
27000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,050 pcs
|
5050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |
The STPS3045DJFY-TR is a Schottky rectifier diode from STMicroelectronics designed for high-efficiency power conversion. It features a maximum repetitive reverse voltage of 45V and an average rectified forward current of 30A. The forward voltage is typically 680mV at 30A, enabling low conduction losses. The device offers fast switching with a recovery time of 500ns at currents above 200mA.

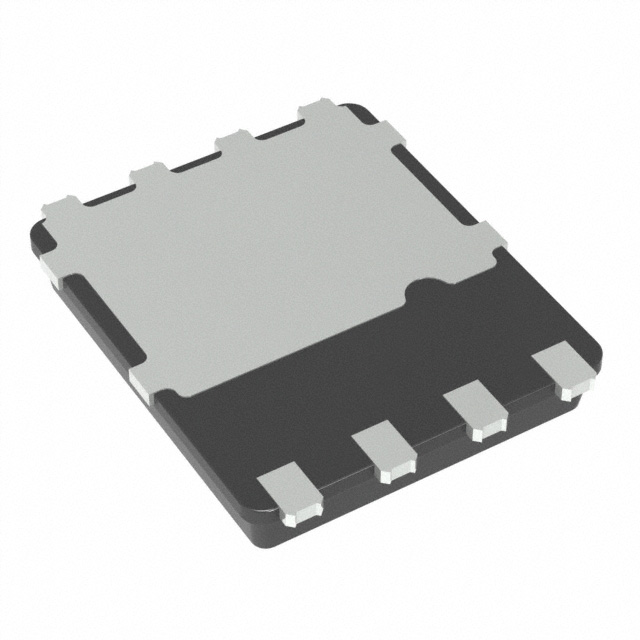

This diode is housed in an 8-PowerVDFN surface-mount package with a wettable flank, also known as PowerFlat (5x6). The junction operating temperature range is -40°C to 175°C, suitable for demanding thermal environments. The compact package supports automated assembly and high-density PCB layouts.
Typical applications include switch-mode power supplies, DC-DC converters, freewheeling diodes, and polarity protection circuits where low forward voltage drop and fast switching are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.02 | $2.02 |
| 10+ | $1.29 | $1.29 |
| 100+ | $0.86 | $0.86 |
| 500+ | $0.69 | $0.69 |
| 1,000+ | $0.63 | $0.63 |
| 3,000+ | $0.55 | $0.55 |
| 6,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage is 45V.
The average rectified forward current is 30A.
The typical forward voltage is 680mV at 30A.
The diode has a fast recovery time of 500ns at currents above 200mA.
It is available in an 8-PowerVDFN surface-mount package, also known as PowerFlat (5x6), with wettable flank.
The junction operating temperature range is -40°C to 175°C.
