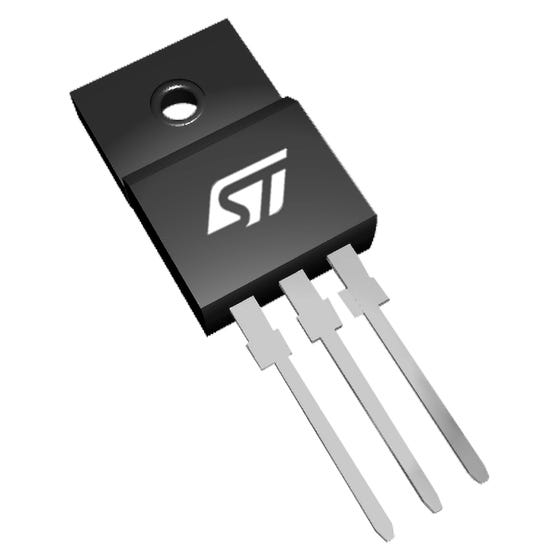

STPS20H100CFP STPS20H100CFP is a Schottky diode array with 1 pair common cathode configuration, rated for 100V reverse voltage and 10A average rectified current per diode.
Mfr Part #:

STPS20H100CFP

Available from 6 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
STPS20H100CFP is a Schottky diode array with 1 pair common cathode configuration, rated for 100V reverse voltage and 10A average rectified current per diode.
✓ Total Stock: 80,566 pcs
$ Price Range: $0.34 - $1.43

STPS20H100CFP Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STPS20H100CFP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

STPS20H100CFP Description

Short technical summary and product information.

The STPS20H100CFP is a Schottky diode array from STMicroelectronics, featuring a 1 pair common cathode configuration. It is designed for high-efficiency rectification with a maximum reverse voltage of 100V and an average rectified current of 10A per diode.



This device offers a low forward voltage drop of 770 mV at 10A, enabling reduced power losses in high-current applications. The fast recovery speed (≤500ns) makes it suitable for switching power supplies and DC-DC converters.



The diode array is housed in a TO-220-3 Full Pack (TO-220FP) through-hole package, providing robust thermal performance with a maximum junction temperature of 175°C. The common cathode configuration simplifies PCB layout for dual-diode circuits.

STPS20H100CFP Quick Information

Product Type: Schottky Diode Array
Canonical Name: STPS20H100CFP Schottky Diode Array, 1 Pair Common Cathode, 100V, 10A per Diode, TO-220FP
Subcategory: Rectifier Diode Array

STPS20H100CFP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STPS20H100CFP Estimated Pricing

Qty Low High
1+ $1.43 $1.43
10+ $0.60 $0.60
100+ $0.52 $0.52
500+ $0.43 $0.43
1,000+ $0.37 $0.37
2,000+ $0.35 $0.35
5,000+ $0.34 $0.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

STPS20H100CFP Features

  • 100V reverse voltage rating.
  • 10A average rectified current per diode.
  • 770mV forward voltage at 10A.
  • Fast recovery ≤500ns.
  • 175°C maximum junction temperature.

STPS20H100CFP Applications

  • Used in switching power supply outputs.
  • Ideal for DC-DC converter rectification.
  • Suitable for freewheeling diode circuits.
  • Common cathode for dual-diode designs.

STPS20H100CFP FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the STPS20H100CFP?

The maximum reverse voltage is 100V.

What is the average rectified current per diode?

The average rectified current is 10A per diode.

What is the forward voltage drop at 10A?

The forward voltage drop is 770 mV maximum at 10A.

What package is the STPS20H100CFP available in?

It is available in a TO-220-3 Full Pack (TO-220FP) through-hole package.

What is the maximum junction temperature?

The maximum junction temperature is 175°C.
