| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300,000 pcs
|
300000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
13,020 pcs
|
13020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,738 pcs
|
1738 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |
The STPS1L40M is a Schottky rectifier diode from STMicroelectronics designed for low voltage, high frequency applications. It is rated for a maximum reverse voltage of 40V and an average forward current of 1A.
Key electrical characteristics include a forward voltage drop of 460mV maximum at 1A forward current and a reverse recovery time of 500ns maximum. The junction operating temperature is rated up to 150°C.

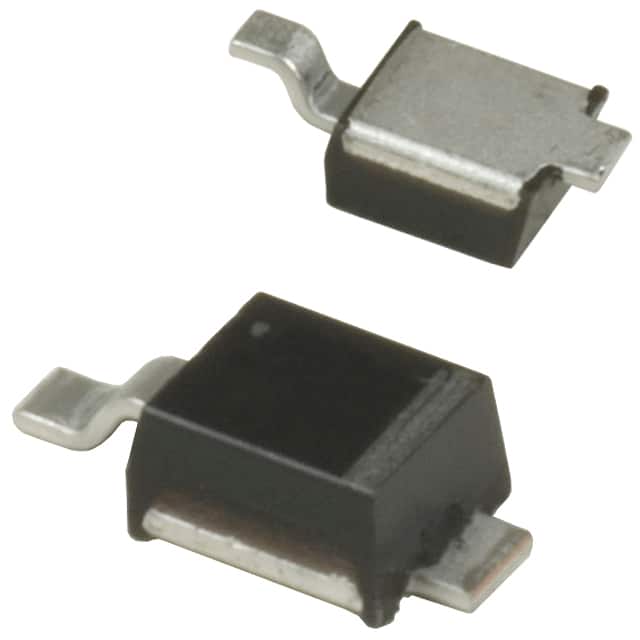

The diode is housed in a DO-216AA surface mount package, also known as the STmite supplier device package. This compact package enables efficient board space utilization in automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
| 10+ | $0.31 | $0.31 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.12 | $0.12 |
| 5,000+ | $0.10 | $0.10 |
| 12,000+ | $0.08 | $0.08 |
| 24,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage is 40V.
The average rectified forward current (Io) is 1A.
The maximum forward voltage drop is 460mV at 1A forward current.
The maximum reverse recovery time is 500ns under test conditions with forward current greater than 200mA.
The diode is available in the DO-216AA surface mount package, also known as the STmite supplier device package.
The maximum operating junction temperature is 150°C.
