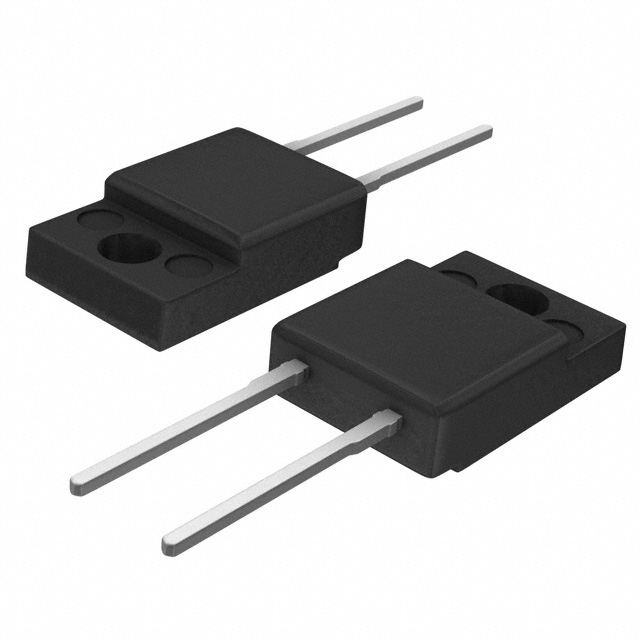

The STPS1545FP is a Schottky rectifier diode designed for high-efficiency power conversion. It offers a maximum DC reverse voltage of 45V and an average rectified current of 15A. The forward voltage is specified at 840mV maximum when tested at 30A, enabling low conduction losses. The device exhibits a fast reverse recovery time of 500ns, suitable for high-frequency switching applications.
The diode is housed in a TO-220FPAC full-pack through-hole package, providing electrical isolation and ease of mounting. The junction operating temperature range extends up to 175°C, supporting demanding thermal environments. This component is RoHS3 compliant and has an MSL rating of 1 (unlimited).
Typical applications include switch-mode power supplies, freewheeling diodes, and polarity protection circuits where low forward voltage drop and fast switching are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.10 | $1.10 |
| 100+ | $0.84 | $0.84 |
| 500+ | $0.66 | $0.66 |
| 1,000+ | $0.56 | $0.56 |
| 2,000+ | $0.51 | $0.51 |
| 5,000+ | $0.45 | $0.45 |
| 10,000+ | $0.44 | $0.44 |
| 25,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage (Vr) is 45V.
The average rectified current (Io) is 15A.
The maximum forward voltage is 840mV at a test current of 30A.
The maximum reverse recovery time (trr) is 500ns.
It is available in a TO-220-2 Full Pack through-hole package (supplier device package TO-220FPAC).
The maximum junction operating temperature is 175°C.
