STPMS2L-PUR The STMicroelectronics STPMS2L-PUR is a smart sensor for current monitoring. It operates with a supply voltage range of 3.2V to 5.5V and offers 0.5% accuracy.
Mfr Part #:

STPMS2L-PUR

Available from 4 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STPMS2L-PUR is a smart sensor for current monitoring. It operates with a supply voltage range of 3.2V to 5.5V and offers 0.5% accuracy.
✓ Total Stock: 161,049 pcs
$ Price Range: $2.65

STPMS2L-PUR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
117,000 pcs
On Request
117000 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
40,500 pcs
On Request
40500 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,540 pcs
On Request
3540 pcs On Request 1 On Request On Request 15+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STPMS2L-PUR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Accuracy
Automotive Grade
Industrial Grade
Input Type
Medical Grade
Military Grade
Mounting Style
Mounting Type
Operating Temperature
Output Type
Sensing Method
Supplier Device Package
Type
View Similar Products (0)

STPMS2L-PUR Description

Short technical summary and product information.

The STMicroelectronics STPMS2L-PUR is a smart sensor designed for current monitoring applications. It features a dual-channel, 1-bit interface and operates within a supply voltage range of 3.2V to 5.5V. The device offers a high accuracy of 0.5% and can function across an operating temperature range of -40°C to +85°C.

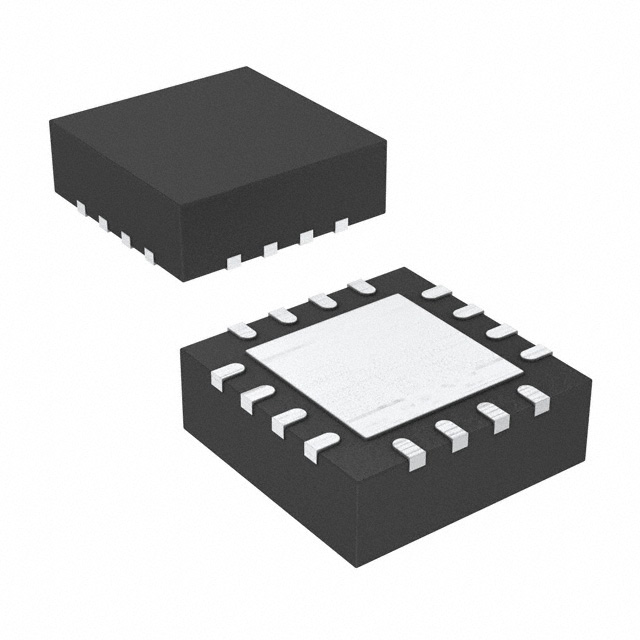

This current monitor is suitable for various applications requiring precise current sensing. Its surface mount (SMD/SMT) package, specifically a 16-QFN (4x4) with an exposed pad, facilitates integration into compact electronic designs. The device supports both analog input and digital output, making it versatile for different system architectures.



Key electrical characteristics include an operating supply current of 4 mA. The sensing method supports both high-side and low-side measurements. The STPMS2L-PUR is supplied in Reel, Cut Tape packaging, suitable for automated assembly processes.

STPMS2L-PUR Quick Information

Product Type: Current Monitor
Canonical Name: STMicroelectronics STPMS2L-PUR Current Monitor
Subcategory: Power Management ICs

STPMS2L-PUR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STPMS2L-PUR Estimated Pricing

Qty Low High
1+ $2.65 $2.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

STPMS2L-PUR Features

  • Smart sensor for current monitoring.
  • Operates from 3.2V to 5.5V supply.
  • Offers 0.5% accuracy.
  • Wide -40°C to +85°C temperature range.
  • Surface mount 16-QFN package.

STPMS2L-PUR Applications

  • Ideal for power management circuits.
  • Suitable for battery monitoring systems.
  • Used in industrial control applications.
  • Applicable for automotive electronics.

STPMS2L-PUR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the STPMS2L-PUR?

The operating voltage range is from 3.2 V to 5.5 V.

What is the accuracy of the STPMS2L-PUR current monitor?

The accuracy is 0.5%.

What is the operating temperature range for this component?

The operating temperature range is -40°C to +85°C.

What type of package is the STPMS2L-PUR supplied in?

It is supplied in a 16-VQFN Exposed Pad package.

How is the STPMS2L-PUR mounted?

It is a surface mount device (SMD/SMT).
