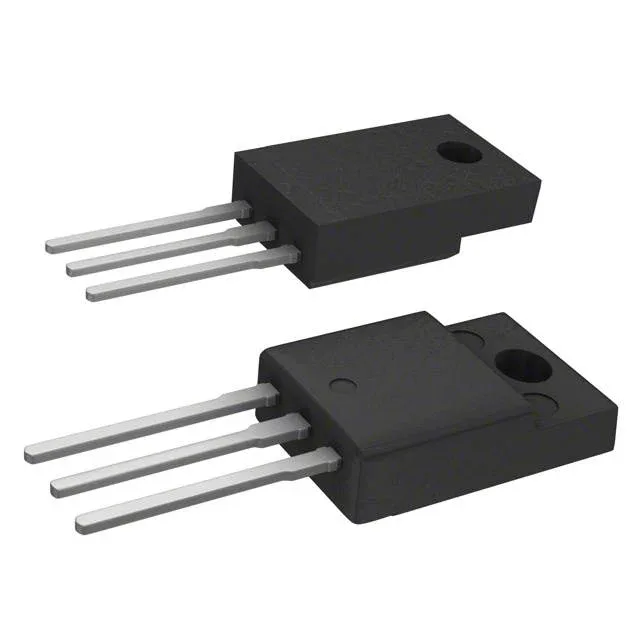

STP80N240K6 The STMicroelectronics STP80N240K6 is an 800V N-Channel MOSFET from the MDmesh™ K6 series. It offers a continuous drain current of 16A and a maximum on-resistance of 220mOhm.
Mfr Part #:

STP80N240K6

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STP80N240K6 is an 800V N-Channel MOSFET from the MDmesh™ K6 series. It offers a continuous drain current of 16A and a maximum on-resistance of 220mOhm.
✓ Total Stock: 1,000 pcs
$ Price Range: $2.56

STP80N240K6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STP80N240K6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Failure Rate
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

STP80N240K6 Description

Short technical summary and product information.

The STMicroelectronics STP80N240K6 is an 800V N-Channel power MOSFET belonging to the MDmesh™ K6 series. It is designed for high-voltage applications, featuring a drain-to-source voltage (Vdss) of 800V and a continuous drain current (Id) of 16A at a case temperature of 25°C.



Key electrical characteristics include a maximum on-resistance (Rds On) of 220mOhm at 7A and 10V gate drive, a gate charge (Qg) of 25.9 nC at 10V, and an input capacitance (Ciss) of 1350 pF at 100V. The gate threshold voltage (Vgs(th)) is typically 4V at 100µA, and the maximum gate-to-source voltage (Vgs) is ±30V.



This MOSFET has a maximum power dissipation rating of 140W at 25°C case temperature and an operating junction temperature range of -55°C to 150°C. It is housed in a TO-220-3 through-hole package, making it suitable for breadboard and perfboard applications and compatible with existing footprints and heatsink clips.



The STP80N240K6 is suitable for various power switching applications where high voltage and moderate current handling are required.

STP80N240K6 Quick Information

Product Type: MOSFET
Series: K6
Canonical Name: STMicroelectronics STP80N240K6 N-Channel MOSFET
Subcategory: N-Channel

STP80N240K6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STP80N240K6 Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

STP80N240K6 Features

  • 800V drain-to-source voltage rating.
  • 16A continuous drain current capability.
  • 220mOhm maximum on-resistance.
  • TO-220-3 through-hole package.
  • 140W maximum power dissipation.

STP80N240K6 Applications

  • High-voltage power switching.
  • Power supply applications.
  • Motor control circuits.
  • Industrial automation systems.

STP80N240K6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage?

800V.

What is the continuous drain current rating?

16A at Tc=25°C.

What is the maximum on-resistance?

220mOhm at Id=7A, Vgs=10V.

What is the operating temperature range?

-55°C to 150°C junction temperature.

What package does the STP80N240K6 come in?

TO-220-3 through-hole package.

What is the typical gate charge?

25.9nC maximum at Vgs=10V.

What is the input capacitance?

1350pF maximum at Vds=100V.
