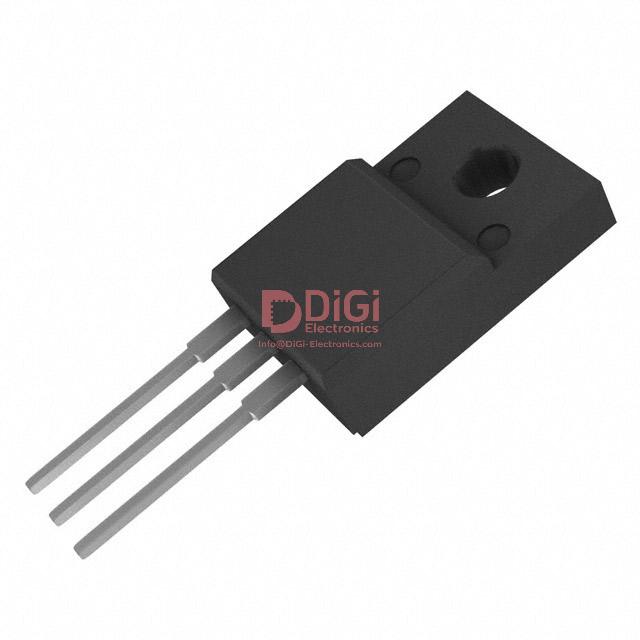

The STMicroelectronics STP75NF75FP is a high-performance N-Channel Power MOSFET from the STripFET™ II series. It is designed for switching applications and features a drain-source voltage of 75V and a continuous drain current of 80A at 25°C case temperature.
This MOSFET boasts a low on-resistance of 11mOhm maximum at 40A and 10V gate-source voltage, contributing to high efficiency in power conversion circuits. The gate charge is 160nC maximum at 10V, and the gate threshold voltage is 4V maximum at 250µA. It operates within a temperature range of -55°C to 175°C.
The STP75NF75FP is housed in a TO-220FP package, suitable for through-hole mounting. Its technology is MOSFET (Metal Oxide), and it is classified as a single N-Channel FET. The maximum power dissipation is rated at 45W at 25°C case temperature.
This component is suitable for advanced high-efficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications, as well as any applications with low gate drive requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) for the STP75NF75FP is 75V.
The continuous drain current for the STP75NF75FP is 80A at 25°C case temperature.
The maximum on-resistance (Rds On) for the STP75NF75FP is 11mOhm at 40A and 10V gate-source voltage.
The operating temperature range for the STP75NF75FP is -55°C to 175°C.
The STP75NF75FP is available in a TO-220FP package.
The RoHS status of the STP75NF75FP is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the STP75NF75FP is 1 Unlimited.
