| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
191,750 pcs
|
191750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24,270 pcs
|
24270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,314 pcs
|
3314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
544 pcs
|
544 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The STP6NK60ZFP is an N-Channel MOSFET manufactured by STMicroelectronics. It is designed for power switching applications with a high drain-to-source voltage rating of 600V and a continuous drain current of 6A at 25°C.
Key electrical characteristics include a maximum on-resistance of 1.2 Ohm at 3A and 10V gate drive voltage, a gate threshold voltage of 4.5V at 100µA, and a maximum gate-source voltage of ±30V. The device has an input capacitance of 905 pF at 25V and a gate charge of 46 nC at 10V.

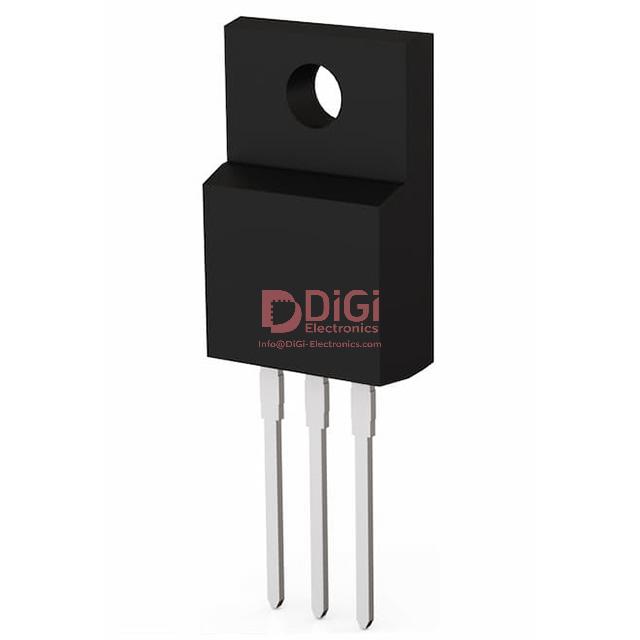

This MOSFET operates within a temperature range of -55°C to 150°C (TJ) and has a maximum power dissipation of 30W (Tc). It is housed in a TO-220-3 Full Pack package, also referred to as TO-220FP, and features a through-hole mounting type.
The STP6NK60ZFP is RoHS3 compliant and has an MSL rating of 1 Unlimited. Its REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) is 600 V.
The continuous drain current (Id) is 6A at 25°C.
The maximum on-resistance (Rds On) is 1.2 Ohm at 3A and 10V.
The operating temperature range is -55°C to 150°C (TJ).
The STP6NK60ZFP is supplied in a TO-220FP package.
Yes, the STP6NK60ZFP is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
