Mfr Part #:

STOD13CMTPUR

The STMicroelectronics STOD13CMTPUR is a 2-output integrated circuit designed for AMOLED display applications. It operates with an input voltage range of 2.5V to 4.5V and provides output voltages of 4.6V and -2.3V to -5.9V.

✓ Total Stock: 2,208 pcs

$ Price Range: $0.75

STOD13CMTPUR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,208 pcs On Request	2208 pcs	On Request	1	On Request	On Request	24+	On Request	On Request

STOD13CMTPUR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Special Purpose Regulators
Manufacturer Name	STMicroelectronics
Applications	Converter, AMOLED Display
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature	-40°C to 85°C

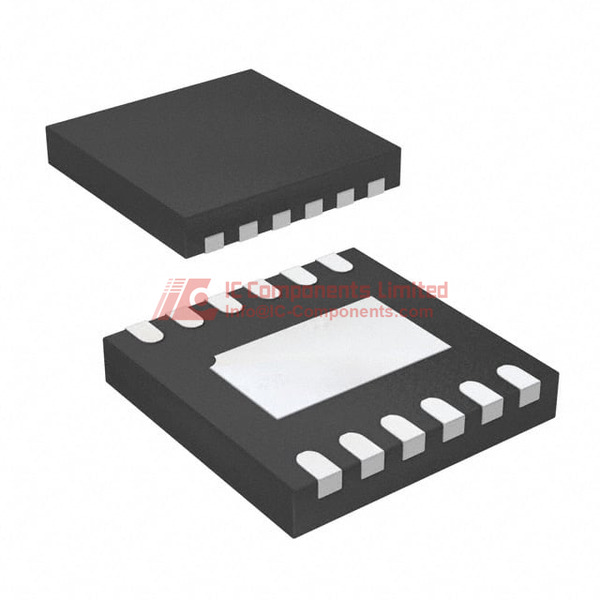

Supplier Device Package	12-DFN (3x3)
Voltage	4.6V, -1.4V ~ -4.4V

View Similar Products (0)

STOD13CMTPUR Description

Short technical summary and product information.

The STMicroelectronics STOD13CMTPUR is a specialized voltage regulator designed for AMOLED display power management. This integrated circuit features two distinct outputs, providing a primary voltage of 4.6V and a secondary adjustable output ranging from -2.3V to -5.9V. It is engineered to operate within an input voltage range of 2.5V to 4.5V.

The device is housed in a compact 12-DFN (3x3) package with an exposed pad, suitable for surface mounting. The operating temperature range is specified from -40°C to 85°C, ensuring reliable performance in various environmental conditions. Its design is optimized for converter and AMOLED display applications, offering precise voltage regulation.

Compliance information indicates RoHS3 compatibility. The component is supplied in Tape & Reel packaging, standard for automated assembly processes. Its specific application focus makes it a key component for portable electronics and display systems requiring efficient and stable power delivery.

STOD13CMTPUR Quick Information

Product Type: Special Purpose Regulator

Canonical Name: STMicroelectronics STOD13CMTPUR Integrated Circuit

Subcategory: Special Purpose Regulators

STOD13CMTPUR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

STOD13CMTPUR Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

STOD13CMTPUR Features

Dual output voltage regulator for AMOLED displays.
Input voltage range: 2.5V to 4.5V.
Output voltages: 4.6V and -2.3V to -5.9V.
Surface mountable 12-DFN (3x3) package.
Operates from -40°C to 85°C.

STOD13CMTPUR Applications

Ideal for AMOLED display power.
Suitable for portable electronics.
Used in display driver circuits.
Power conversion applications.

STOD13CMTPUR FAQs

6 frequently asked questions generated from this part’s specifications.

What are the output voltage options for the STOD13CMTPUR?

The STOD13CMTPUR provides an output voltage of 4.6V and an adjustable output ranging from -2.3V to -5.9V.

What is the input voltage range for the STOD13CMTPUR?

The input voltage range for the STOD13CMTPUR is 2.5V to 4.5V.

What is the operating temperature range of the STOD13CMTPUR?

The STOD13CMTPUR operates within a temperature range of -40°C to 85°C.

What package type is the STOD13CMTPUR supplied in?

The STOD13CMTPUR is supplied in a 12-UFDFN exposed pad package.

How is the STOD13CMTPUR packaged for shipment?

The STOD13CMTPUR is available in Tape & Reel (TR) packaging.

What are the primary applications for the STOD13CMTPUR?

The STOD13CMTPUR is designed for converter and AMOLED display applications.
