STNS01PUR The STMicroelectronics STNS01PUR is a battery charger IC designed for 1-cell Lithium-Ion batteries. It supports a 5.4V input voltage and offers a 220mA charge current.
Mfr Part #:

STNS01PUR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STNS01PUR is a battery charger IC designed for 1-cell Lithium-Ion batteries. It supports a 5.4V input voltage and offers a 220mA charge current.
✓ Total Stock: 72,000 pcs
$ Price Range: $1.29

STNS01PUR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
72,000 pcs
On Request
72000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STNS01PUR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Chemistry
Battery Pack Voltage
Charge Current
Current
Fault Protection
Interface
Mounting Type
Number of Cells
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

STNS01PUR Description

Short technical summary and product information.

The STMicroelectronics STNS01PUR is an integrated circuit designed for charging single-cell Lithium-Ion batteries. It operates with an input voltage of 5.4V and provides a programmable charge current of 220mA.



This IC features a USB interface for power input and includes fault protection for over current, over temperature, and short circuits. It is suitable for applications requiring a compact and reliable battery charging solution.

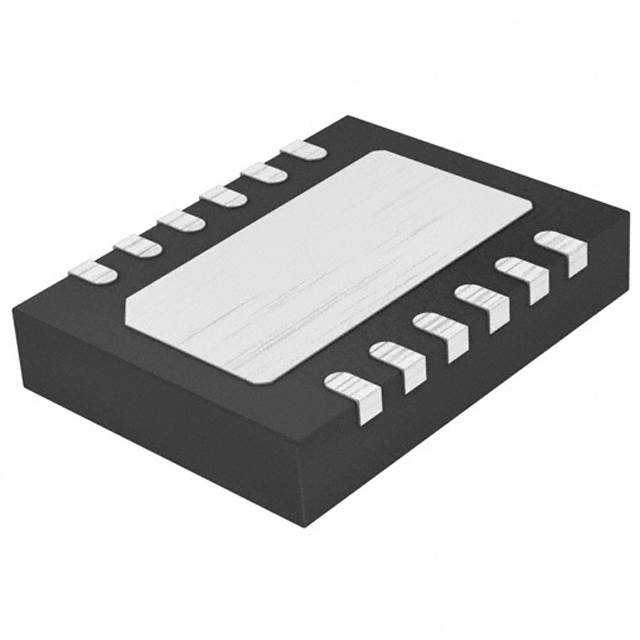

The STNS01PUR is available in a 12-DFN (3x3) surface mount package, specifically a 12-WFDFN Exposed Pad, facilitating integration into space-constrained designs. The operating temperature range is -40°C to 85°C (TA).

STNS01PUR Quick Information

Product Type: Battery Charger IC
Canonical Name: STMicroelectronics STNS01PUR Lithium-Ion Battery Charger IC
Subcategory: PMIC

STNS01PUR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STNS01PUR Estimated Pricing

Qty Low High
1+ $1.29 $1.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

STNS01PUR Features

  • Charges 1-cell Lithium-Ion batteries.
  • Supports 5.4V input voltage.
  • Provides 220mA programmable charge current.
  • Includes USB interface.
  • Surface mount 12-DFN package.

STNS01PUR Applications

  • Portable electronic devices.
  • Battery powered systems.
  • USB charging applications.
  • Compact power management.

STNS01PUR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage for the STNS01PUR?

The input voltage is 5.4V.

What is the charge current for the STNS01PUR?

The charge current is 220mA.

How many cells does the STNS01PUR charge?

It charges 1 cell.

What battery chemistry is supported by the STNS01PUR?

It supports Lithium Ion battery chemistry.

What fault protections are included in the STNS01PUR?

It includes Over Current, Over Temperature, and Short Circuit fault protection.

What is the operating temperature range for the STNS01PUR?

The operating temperature range is -40°C to 85°C.

What package type is the STNS01PUR supplied in?

It is supplied in a 12-WFDFN Exposed Pad package.
