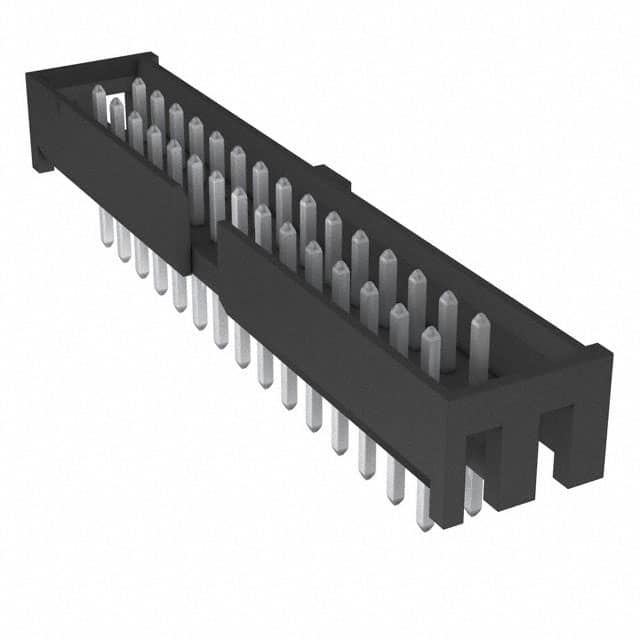

STMM-115-02-T-D Samtec STMM-115-02-T-D is a 30 position, 2 row, 2.00mm pitch shrouded header with male pins, through hole termination, and tin plating.
Mfr Part #:

STMM-115-02-T-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec STMM-115-02-T-D is a 30 position, 2 row, 2.00mm pitch shrouded header with male pins, through hole termination, and tin plating.
✓ Total Stock: 265 pcs
$ Price Range: $1.74 - $4.24

STMM-115-02-T-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
265 pcs
On Request
265 pcs On Request 1 On Request On Request 721 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-115-02-T-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

STMM-115-02-T-D Description

Short technical summary and product information.

The Samtec STMM-115-02-T-D is a 30-position, 2-row shrouded header from the STMM series. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for board-to-cable/wire applications. The connector uses through hole mounting with solder termination and is constructed with a black Liquid Crystal Polymer (LCP) insulator and phosphor bronze contacts with a tin finish. The header is fully shrouded with four walls and includes a keying slot for polarization. It is rated for 3A current and operates over a temperature range of -55°C to +105°C. The overall contact length is 7.67mm with an insulation height of 4.83mm. This connector is designed for reliable push-pull fastening and is RoHS3 compliant and lead-free solderable.

STMM-115-02-T-D Quick Information

Product Type: Header, Male Pins
Series: STMM
Canonical Name: Samtec STMM-115-02-T-D 30 Position 2.00mm Pitch Through Hole Shrouded Header, Male Pins
Subcategory: Shrouded Header

STMM-115-02-T-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

STMM-115-02-T-D Estimated Pricing

Qty Low High
1+ $4.24 $4.24
48+ $2.93 $2.93
112+ $2.60 $2.60
512+ $2.50 $2.50
1,008+ $2.19 $2.19
2,000+ $1.85 $1.85
5,008+ $1.74 $1.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-115-02-T-D Features

  • 30 position, 2 row, 2.00mm pitch header.
  • Shrouded with four walls and keying slot.
  • Through hole mounting with solder termination.
  • Tin plated phosphor bronze contacts.
  • Rated for 3A and -55°C to +105°C operation.

STMM-115-02-T-D Applications

  • Board-to-cable/wire interconnect applications.
  • Industrial control and automation systems.
  • Test and measurement equipment.
  • Consumer electronics requiring compact connectors.

STMM-115-02-T-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the STMM-115-02-T-D have?

30 positions, arranged in 2 rows.

What is the pitch of this connector?

2.00mm (0.079") pitch with 2.00mm row spacing.

What is the current rating?

3A.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to +105°C.

Is this connector RoHS compliant?

RoHS3 Compliant and lead-free solderable.

What is the insulation material and color?

Black Liquid Crystal Polymer (LCP).
