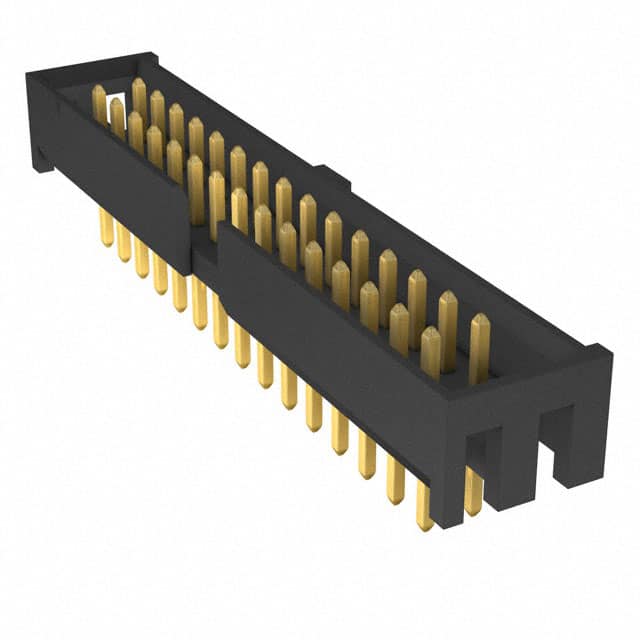

STMM-115-02-G-D The Samtec Inc. STMM-115-02-G-D is a 30-position header with a 2mm pitch, designed for board to cable/wire applications. It features a gold contact finish and surface mount termination.
Mfr Part #:

STMM-115-02-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. STMM-115-02-G-D is a 30-position header with a 2mm pitch, designed for board to cable/wire applications. It features a gold contact finish and surface mount termination.
✓ Total Stock: 60 pcs
$ Price Range: $0.77

STMM-115-02-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-115-02-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

STMM-115-02-G-D Description

Short technical summary and product information.

This Samtec Inc. STMM-115-02-G-D is a shrouded header with 30 positions and a 2mm pitch, suitable for board to cable/wire connections. The header utilizes male pins made of phosphor bronze with a gold contact finish, offering a current rating of 3A. The insulation is black Liquid Crystal Polymer (LCP) with a height of 4.83mm.



Designed for surface mounting, this header has a solder termination and a push-pull fastening type. It operates within a temperature range of -55°C to +125°C. The series is STMM, and it features a keying slot for proper alignment. The datasheet indicates a lead-free solderable status and an SMT lead coplanarity of 0.10mm max. The operating temperature range is specified as -55°C to +105°C with Tin plating and -55°C to +125°C with Gold plating.

STMM-115-02-G-D Quick Information

Product Type: Header
Series: STMM
Canonical Name: Samtec Inc. STMM Series 30 Position 2mm Pitch Shrouded Header, Male Pin
Subcategory: Male Pins

STMM-115-02-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

STMM-115-02-G-D Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-115-02-G-D Features

  • 30 positions with 2mm pitch.
  • Gold contact finish for reliability.
  • Surface mount termination style.
  • Rated for 3A current.
  • Shrouded header with 4 walls.

STMM-115-02-G-D Applications

  • Ideal for board to cable connections.
  • Suitable for wire to board applications.
  • Used in systems requiring secure mating.
  • Applicable in environments with wide temperature ranges.

STMM-115-02-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the STMM-115-02-G-D header have?

The STMM-115-02-G-D header has 30 positions.

What is the pitch of the STMM-115-02-G-D header?

The pitch of the STMM-115-02-G-D header is 2.00mm (0.079").

What is the current rating for the STMM-115-02-G-D header?

The STMM-115-02-G-D header has a current rating of 3A.

What type of mounting is used for the STMM-115-02-G-D header?

The STMM-115-02-G-D header uses surface mount mounting.

What are the operating temperature limits for the STMM-115-02-G-D header?

The operating temperature range for the STMM-115-02-G-D header is -55°C to +125°C.

What material are the contacts of the STMM-115-02-G-D header made from?

The contacts of the STMM-115-02-G-D header are made from Phosphor Bronze.

What is the contact finish on the STMM-115-02-G-D header?

The STMM-115-02-G-D header has a gold contact finish.
