| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

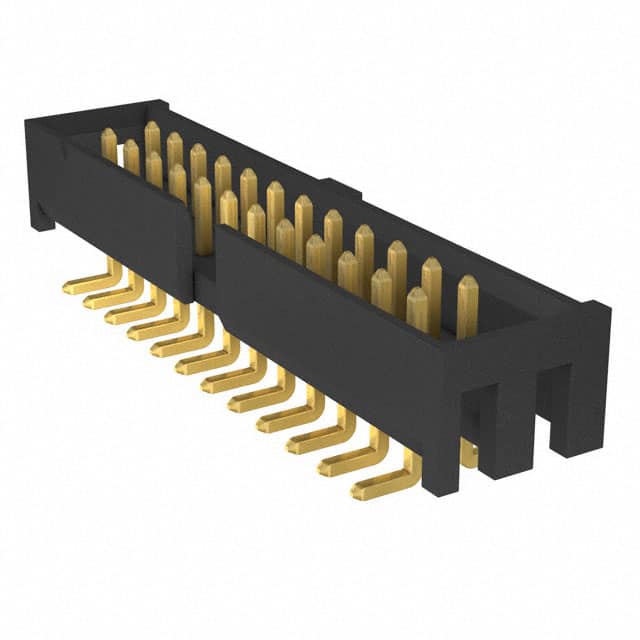

The Samtec STMM-112-02-G-D-SM is a 24-position, 2-row shrouded header designed for board-to-cable/wire applications. It is part of the STMM series and features a 2.00mm pitch with a 4-wall shrouded design that provides keying and polarization for secure mating. The contacts are square male pins made of phosphor bronze with a gold finish (0.51µm), ensuring reliable conductivity and corrosion resistance. The insulator is black liquid crystal polymer (LCP) rated for operating temperatures from -55°C to 125°C when used with gold plating. This header is surface mount (SMT) terminated with matte tin on the tails, and it is lead-free solderable. The SMT lead coplanarity is controlled to a maximum of 0.10mm. It is rated for 3A current and mates with Samtec TCSD series connectors (except -SR). The push-pull fastening and keying slot facilitate easy insertion and alignment. This component is suitable for a variety of applications requiring reliable signal or power connections in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.41 | $6.41 |
| 19+ | $6.13 | $6.13 |
| 513+ | $5.36 | $5.36 |
| 1,007+ | $4.43 | $4.43 |
| 2,508+ | $3.46 | $3.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 24 positions, arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A per contact.
It is a surface mount (SMT) header with solder termination.
The operating temperature range is -55°C to 125°C when used with gold plating.
The contacts have a gold finish with a thickness of 0.51µm (20µin).
Yes, the datasheet states it is lead-free solderable.
