| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 04+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

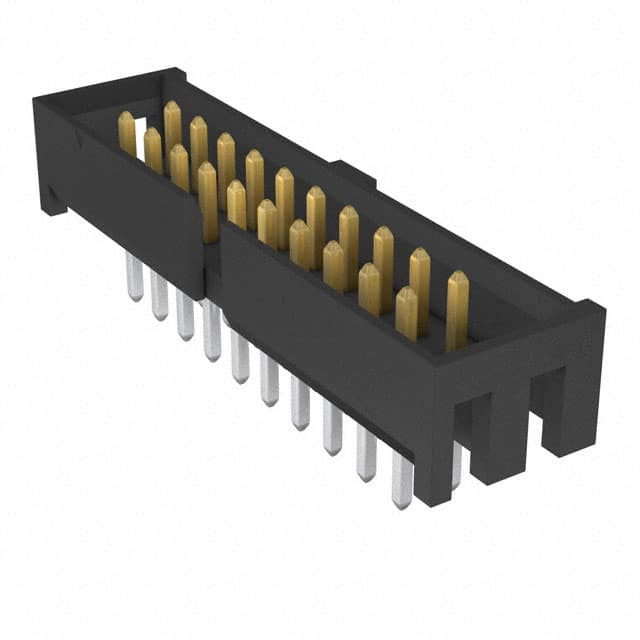

The STMM-110-02-S-D is a 20-position, 2-row shrouded header from Samtec's STMM series. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for board-to-cable/wire applications. The connector is through-hole mounted with solder termination and uses a push-pull fastening mechanism.
The contacts are made of phosphor bronze with a tin plating (0.76µm thickness) and have a square shape. The mating contact length is 3.05mm, and the overall contact length is 7.67mm. The insulator is black liquid crystal polymer (LCP) with a height of 4.83mm, and the shroud provides four-wall protection.
This header is rated for 3A current and has an operating temperature range of -55°C to 125°C. It includes a keying slot for proper alignment. The part is lead-free solderable and listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.45 | $6.45 |
| 22+ | $5.83 | $5.83 |
| 44+ | $5.39 | $5.39 |
| 506+ | $4.21 | $4.21 |
| 1,012+ | $3.90 | $3.90 |
| 2,508+ | $3.79 | $3.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions arranged in 2 rows of 10.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A.
It is through-hole mounted with solder termination.
The specified range is -55°C to 125°C, though the datasheet indicates -55°C to +105°C for tin-plated versions.
The contacts are tin-plated with a thickness of 0.76µm (30.0µin).
Yes, it includes a keying slot for polarization.
