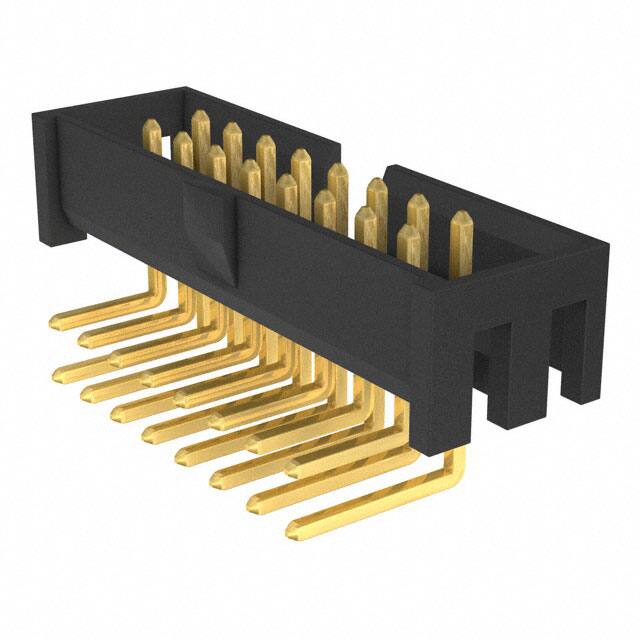

STMM-108-02-G-D-RA Samtec STMM-108-02-G-D-RA is a 16 position, 2.00mm pitch, right angle shrouded header with male pins and gold plating.
Mfr Part #:

STMM-108-02-G-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec STMM-108-02-G-D-RA is a 16 position, 2.00mm pitch, right angle shrouded header with male pins and gold plating.
✓ Total Stock: 970 pcs
$ Price Range: $3.37 - $4.87

STMM-108-02-G-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
970 pcs
On Request
970 pcs On Request 1 On Request On Request 705 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-108-02-G-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

STMM-108-02-G-D-RA Description

Short technical summary and product information.

The Samtec STMM-108-02-G-D-RA is a 16-position, 2-row, 2.00mm pitch shrouded header designed for board-to-cable/wire applications. It features a right-angle through-hole mounting style with solder termination, making it suitable for compact PCB layouts where space is constrained.



This connector is fully shrouded with a 4-wall design and includes a keying slot for polarization, ensuring correct mating alignment. The contacts are made of phosphor bronze with 20.0µin (0.51µm) gold plating, providing reliable electrical performance and corrosion resistance. The insulator is black liquid crystal polymer (LCP), rated for operating temperatures from -55°C to +125°C.



With a current rating of 3A per contact and a push-pull fastening mechanism, this header is suitable for a variety of signal interconnection needs. The part is lead-free solderable and has an MSL of 1 (unlimited floor life).

STMM-108-02-G-D-RA Quick Information

Product Type: Header, Male Pins
Series: STMM
Canonical Name: Samtec STMM-108-02-G-D-RA 16 Position 2.00mm Pitch Right Angle Shrouded Header, Male Pins
Subcategory: Shrouded Header

STMM-108-02-G-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

STMM-108-02-G-D-RA Estimated Pricing

Qty Low High
1+ $4.87 $4.87
520+ $3.82 $3.82
1,014+ $3.62 $3.62
2,522+ $3.37 $3.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-108-02-G-D-RA Features

  • 16 position, 2 row, 2.00mm pitch header.
  • Right angle through-hole mounting with solder termination.
  • Shrouded 4-wall design with keying slot.
  • Gold plated phosphor bronze contacts, 20.0µin.
  • Operating temperature range -55°C to +125°C.

STMM-108-02-G-D-RA Applications

  • Board-to-cable/wire signal interconnections.
  • Compact PCB layouts requiring right angle mating.
  • Applications needing polarized shrouded connectors.
  • Industrial and commercial electronic assemblies.

STMM-108-02-G-D-RA FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the STMM-108-02-G-D-RA have?

It has 16 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 2.00mm (0.079 inches).

What is the current rating of the STMM-108-02-G-D-RA?

The current rating is 3A per contact.

What mounting type does this header use?

It uses through-hole, right angle mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Is the STMM-108-02-G-D-RA RoHS compliant?

RoHS3 compliance is claimed but unverified.
