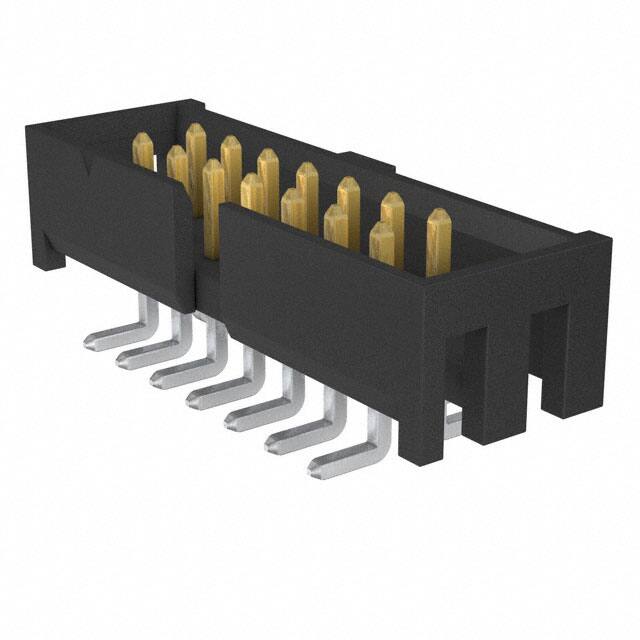

STMM-107-02-S-D-SM Surface mount header with 14 positions in 2 rows at 2.00mm pitch. Shrouded 4-wall design with tin-plated phosphor bronze contacts.
Mfr Part #:

STMM-107-02-S-D-SM

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Surface mount header with 14 positions in 2 rows at 2.00mm pitch. Shrouded 4-wall design with tin-plated phosphor bronze contacts.
✓ Total Stock: 3 pcs
$ Price Range: $3.49 - $6.23

STMM-107-02-S-D-SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-107-02-S-D-SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

STMM-107-02-S-D-SM Description

Short technical summary and product information.

This Samtec STMM-107-02-S-D-SM is a surface mount header from the STMM series. It features 14 male pin positions arranged in 2 rows with a pitch of 2.00mm. The shrouded 4-wall housing provides a keying slot for secure mating and polarization. Termination is via surface mount solder, making it suitable for automated assembly.



Contacts are made of phosphor bronze with a tin plating, offering a current rating of 3A. The insulator is black liquid crystal polymer (LCP). The operating temperature range for tin-plated contacts is -55°C to +105°C, as specified in the datasheet. SMT lead coplanarity is held to 0.10mm maximum.



This connector is designed for board-to-cable/wire applications and is RoHS3 compliant and REACH unaffected. Moisture sensitivity level is MSL 1 (unlimited). It mates with Samtec TCSD series (except -SR).

STMM-107-02-S-D-SM Quick Information

Product Type: Header, Male Pins
Series: STMM
Canonical Name: Header, Male Pins, 14 Positions, 2 Rows, 2.00mm Pitch, Surface Mount, Solder, Shrouded
Subcategory: Shrouded Header

STMM-107-02-S-D-SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

STMM-107-02-S-D-SM Estimated Pricing

Qty Low High
1+ $6.23 $6.23
28+ $5.79 $5.79
56+ $5.75 $5.75
504+ $4.71 $4.71
1,008+ $4.22 $4.22
2,520+ $3.49 $3.49

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-107-02-S-D-SM Features

  • 14 positions in 2 rows at 2.00mm pitch.
  • Shrouded 4-wall design with keying slot.
  • Surface mount solder termination.
  • Tin-plated phosphor bronze contacts rated for 3A.
  • Operating temperature range -55°C to +105°C.

STMM-107-02-S-D-SM Applications

  • Ideal for board-to-cable interconnections.
  • Suitable for industrial control and automation.
  • Can be used in consumer electronics assemblies.

STMM-107-02-S-D-SM FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the STMM-107-02-S-D-SM have?

It has 14 positions.

What is the pitch of this header?

The pitch is 2.00mm.

What is the current rating?

The current rating is 3A.

What is the mounting type?

Surface mount.

How many rows does it have?

2 rows.

What is the contact finish?

Tin.

What is the operating temperature range?

-55°C to +105°C with tin finish (per datasheet).
