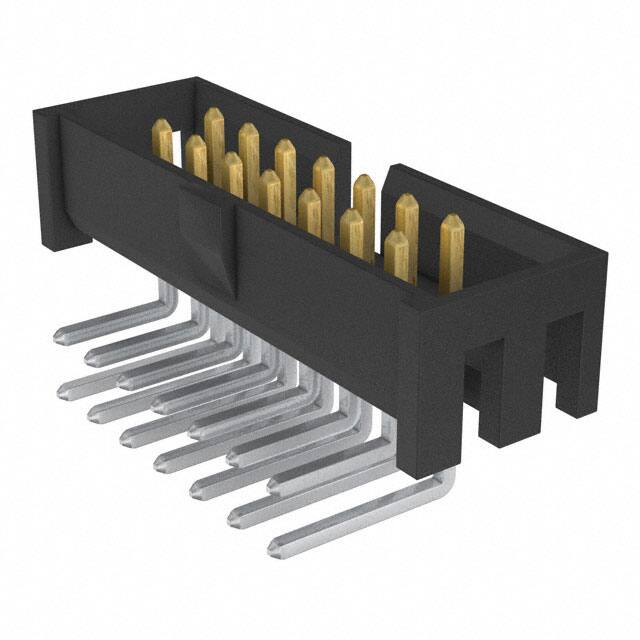

STMM-107-02-S-D-RA This is a 14-position, 2-row, 2.00mm pitch header connector from Samtec's STMM series. It features a shrouded 4-wall design, right-angle through-hole solder termination, and tin-plated contacts.
Mfr Part #:

STMM-107-02-S-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This is a 14-position, 2-row, 2.00mm pitch header connector from Samtec's STMM series. It features a shrouded 4-wall design, right-angle through-hole solder termination, and tin-plated contacts.
✓ Total Stock: 77 pcs
$ Price Range: $3.28 - $5.71

STMM-107-02-S-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
77 pcs
On Request
77 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-107-02-S-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

STMM-107-02-S-D-RA Description

Short technical summary and product information.

The STMM-107-02-S-D-RA is a 14-position header connector from Samtec's STMM series. It has 2 rows with a 2.00mm pitch and is designed for board-to-cable/wire applications. The connector features a shrouded 4-wall housing that provides mating alignment and protects the male pins. Contacts are made of phosphor bronze with a 30µin tin plating, rated for 3A current. The operating temperature range is -55°C to 125°C. Mounting is through-hole right-angle, with solder termination. The insulator is black liquid crystal polymer (LCP) with a keying slot for polarization. This connector mates with Samtec's TCSD series (except -SR).

STMM-107-02-S-D-RA Quick Information

Product Type: Header
Series: STMM
Canonical Name: Header, 14 Position, 2 Row, 2.00mm Pitch, Through Hole, Right Angle, Male Pin, Shrouded
Subcategory: Male Pins

STMM-107-02-S-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STMM-107-02-S-D-RA Estimated Pricing

Qty Low High
1+ $5.71 $5.71
28+ $5.31 $5.31
56+ $5.27 $5.27
504+ $4.39 $4.39
1,008+ $3.88 $3.88
2,520+ $3.28 $3.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-107-02-S-D-RA Features

  • 14 positions with 2 rows at 2.00mm pitch.
  • Shrouded 4-wall design for mating alignment.
  • Right-angle through-hole mounting for space-saving.
  • Tin-plated phosphor bronze contacts rated 3A.

STMM-107-02-S-D-RA Applications

  • Board to cable/wire connections.
  • Ideal for compact electronic assemblies.
  • Used in industrial and consumer electronics.

STMM-107-02-S-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the STMM-107-02-S-D-RA?

2.00mm

How many positions does this connector have?

14 positions

What is the current rating?

3A

What is the mounting type?

Through hole, right angle

What is the operating temperature range?

-55°C to 125°C

What contact finish does it have?

Tin, 30µin thickness

Is it shrouded?

Yes, it has a shrouded 4-wall design
