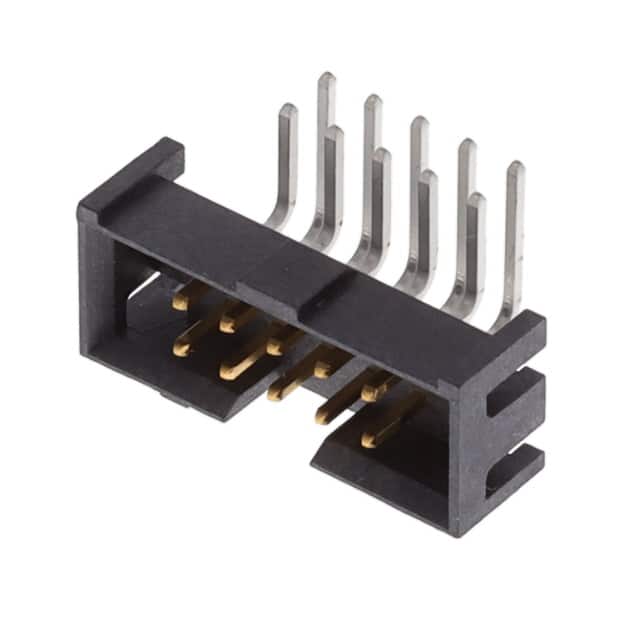

STMM-105-02-S-D-RA Samtec STMM-105-02-S-D-RA is a 10 position, 2 row, 2.00mm pitch shrouded header with male pins, through hole right angle mounting, and solder termination.
Mfr Part #:

STMM-105-02-S-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec STMM-105-02-S-D-RA is a 10 position, 2 row, 2.00mm pitch shrouded header with male pins, through hole right angle mounting, and solder termination.
✓ Total Stock: 47 pcs
$ Price Range: $3.30 - $6.13

STMM-105-02-S-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
47 pcs
On Request
47 pcs On Request 1 On Request On Request 622 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-105-02-S-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

STMM-105-02-S-D-RA Description

Short technical summary and product information.

The Samtec STMM-105-02-S-D-RA is a 10 position, 2 row, 2.00mm pitch shrouded header designed for board to cable/wire applications. This connector features a 4-wall shrouded housing made from black Liquid Crystal Polymer (LCP) with a push-pull fastening type and a keying slot for proper alignment. The contacts are made of phosphor bronze with a tin finish and a contact finish thickness of 0.76µm (30.0µin).



This header is configured for through hole, right angle mounting with solder termination. The contact length is 3.05mm (0.120") and the insulation height is 6.00mm (0.236"). All 10 positions are loaded with square male pin contacts. The connector is rated for a current of 3A and has an operating temperature range of -55°C to 125°C.

STMM-105-02-S-D-RA Quick Information

Product Type: Header, Male Pins
Series: STMM
Canonical Name: Samtec STMM-105-02-S-D-RA 10 Position 2.00mm Pitch Shrouded Header, Male Pins, Through Hole Right Angle
Subcategory: Board to Cable/Wire

STMM-105-02-S-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STMM-105-02-S-D-RA Estimated Pricing

Qty Low High
1+ $6.13 $6.13
25+ $5.86 $5.86
525+ $4.56 $4.56
1,015+ $4.24 $4.24
2,520+ $3.30 $3.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-105-02-S-D-RA Features

  • 10 position 2 row 2.00mm pitch header.
  • Through hole right angle mounting style.
  • Shrouded 4-wall housing with keying slot.
  • Rated for 3A continuous current.
  • Operating temperature range -55°C to 125°C.

STMM-105-02-S-D-RA Applications

  • Used in board to cable/wire connections.
  • Suitable for compact right angle interconnect designs.
  • Ideal for applications requiring a shrouded header.

STMM-105-02-S-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the STMM-105-02-S-D-RA have?

The STMM-105-02-S-D-RA has 10 positions in 2 rows.

What is the pitch of this connector?

The pitch is 2.00mm (0.079") with a row spacing of 2.00mm (0.079").

What is the current rating of the STMM-105-02-S-D-RA?

The current rating is 3A.

What is the mounting type for this header?

The mounting type is through hole, right angle.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact material and finish?

The contact material is phosphor bronze with a tin finish of 0.76µm (30.0µin).

Is the header shrouded?

Yes, it is a shrouded - 4 wall header with a push-pull fastening type and a keying slot.
