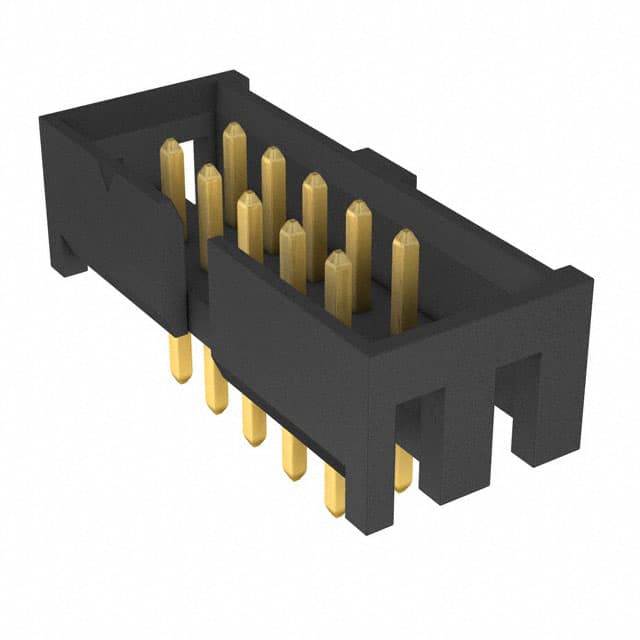

STMM-105-02-G-D Samtec STMM-105-02-G-D is a 10 position, 2.00mm pitch shrouded header with male pins, through hole mounting, and gold contact finish.
Mfr Part #:

STMM-105-02-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec STMM-105-02-G-D is a 10 position, 2.00mm pitch shrouded header with male pins, through hole mounting, and gold contact finish.
✓ Total Stock: 23 pcs
$ Price Range: $0.77

STMM-105-02-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STMM-105-02-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

STMM-105-02-G-D Description

Short technical summary and product information.

The Samtec STMM-105-02-G-D is a 10-position, 2-row shrouded header connector designed for reliable board-to-board or wire-to-board connections. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact designs. The header is through-hole mounted and has a 4-wall shrouded housing that provides pin protection and keying slot for correct mating orientation.



Electrical specifications include a 3A current rating per contact and a wide operating temperature range of -55°C to +125°C. Contacts are made of phosphor bronze with a 20µin gold finish, ensuring excellent conductivity and corrosion resistance. The insulator is black liquid crystal polymer (LCP), offering high strength and thermal stability.



This connector is ideal for applications requiring a secure, polarized connection in industrial, automotive, and consumer electronics. The push-pull fastening type allows easy mating and unmating. Overall contact length is 7.67mm, with a contact length of 3.05mm.

STMM-105-02-G-D Quick Information

Product Type: Header, Male Pins
Series: STMM
Canonical Name: Samtec STMM-105-02-G-D 10 Position 2.00mm Pitch Shrouded Header, Through Hole, Gold
Subcategory: Shrouded Header

STMM-105-02-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: REACH Unaffected

STMM-105-02-G-D Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

STMM-105-02-G-D Features

  • 10 positions in 2 rows.
  • 2.00mm pitch and row spacing.
  • Gold plated phosphor bronze contacts.
  • Rated for 3A continuous current.
  • Shrouded 4-wall housing with keying slot.

STMM-105-02-G-D Applications

  • Board-to-board interconnect applications.
  • Industrial control and automation systems.
  • Consumer electronics and peripherals.
  • Automotive electronic modules.
  • Test and measurement equipment.

STMM-105-02-G-D FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the STMM-105-02-G-D have?

10 positions arranged in 2 rows.

What is the pitch of this header?

2.00mm (0.079 inches).

What is the current rating of the STMM-105-02-G-D?

3A per contact.

What is the mounting type for this connector?

Through hole mounting.

What is the operating temperature range?

-55°C to +125°C.

What contact finish does the STMM-105-02-G-D have?

Gold, 20µin (0.51µm) thickness.
