STMM-105-01-T-D

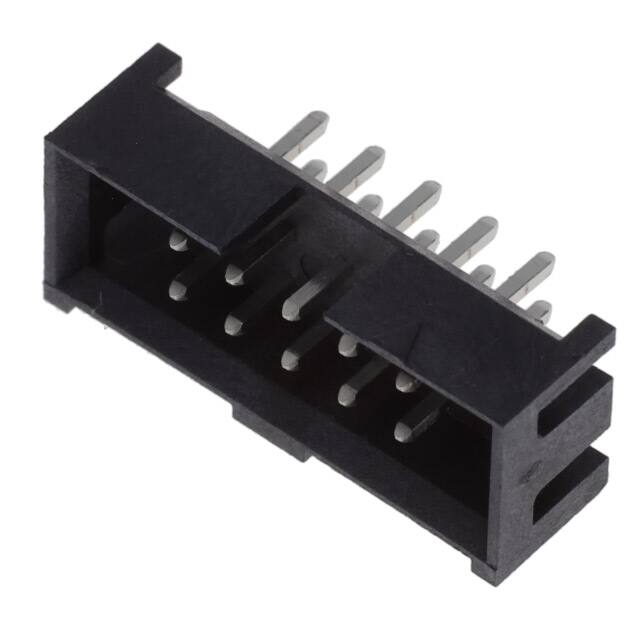

The STMM-105-01-T-D is a 10-position, 2-row shrouded box header from Samtec’s STMM series. It features a 2.00mm pitch and row spacing, making it suitable for compact board-to-cable/wire interconnect applications. The header is fully loaded with square male pins made of phosphor bronze and finished with matte tin plating.

The connector uses a through-hole mounting style with solder termination and is housed in a black liquid crystal polymer (LCP) insulator. It includes a keying slot for correct mating orientation and has a push-pull fastening mechanism. Insulation height is 4.83mm, overall contact length is 6.48mm, and post length is 2.54mm.

Rated at 3A per contact, the STMM-105-01-T-D operates over a temperature range of -55°C to 105°C. It is packaged in tubes with a standard quantity of 35 pieces. The part is compliant with RoHS3, REACH, and is halogen free according to the manufacturer.

Typical applications include IDC cable systems and other wire-to-board connections requiring a reliable, polarized connector. The shrouded design protects the pins and prevents mismating. Similar parts are available with different plating options such as gold or selective gold.
