| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

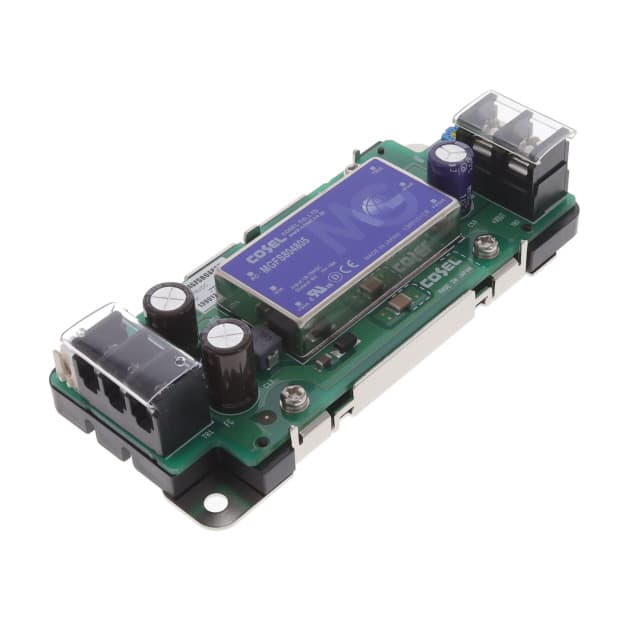

The Cosel STMGFS804805 is an enclosed DC-DC converter designed for reliable power conversion in ITE (Commercial) applications. It provides a single 5V output at 16A, delivering a total of 80W of power. The converter operates with a wide input voltage range of 9-36V DC or 18-76V DC, offering flexibility in system design.
Key electrical specifications include a high efficiency of up to 90% and an isolation voltage of 1.5 kV. The operating temperature range is -20°C to 70°C with derating. The unit features overcurrent protection, overvoltage protection, and remote ON/OFF functionality, enhancing its robustness and control capabilities. The output voltage is adjustable by ±10%.
Designed for easy integration, the STMGFS804805 utilizes a chassis mount configuration. It complies with standard 62368-1, ensuring safety and performance in various electronic systems. This converter is suitable for applications requiring a stable and efficient power supply.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V.
The maximum output current is 16A.
The output power is 80W.
The input voltage range is 9-36V DC or 18-76V DC.
The operating temperature range is -20°C to 70°C with derating.
Yes, it has built-in overcurrent protection that recovers automatically.
It complies with standard 62368-1.
