STM8S105K6U6 The STM8S105K6U6 is an 8-bit microcontroller from STMicroelectronics featuring 32KB of FLASH program memory and operating at 16MHz. It offers a range of peripherals and connectivity options.
Mfr Part #:

STM8S105K6U6

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STM8S105K6U6 is an 8-bit microcontroller from STMicroelectronics featuring 32KB of FLASH program memory and operating at 16MHz. It offers a range of peripherals and connectivity options.
✓ Total Stock: 36,160 pcs
$ Price Range: $6.40

STM8S105K6U6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
36,160 pcs
On Request
36160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM8S105K6U6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

STM8S105K6U6 Description

Short technical summary and product information.

This STM8S105K6U6 microcontroller from STMicroelectronics is an 8-bit device designed for embedded applications. It features 32KB of FLASH program memory and 2KB of RAM, with a clock speed of 16MHz. The device supports various communication protocols including I2C, SPI, and UART/USART, along with peripherals like Brown-out Detect/Reset, POR, PWM, and WDT.

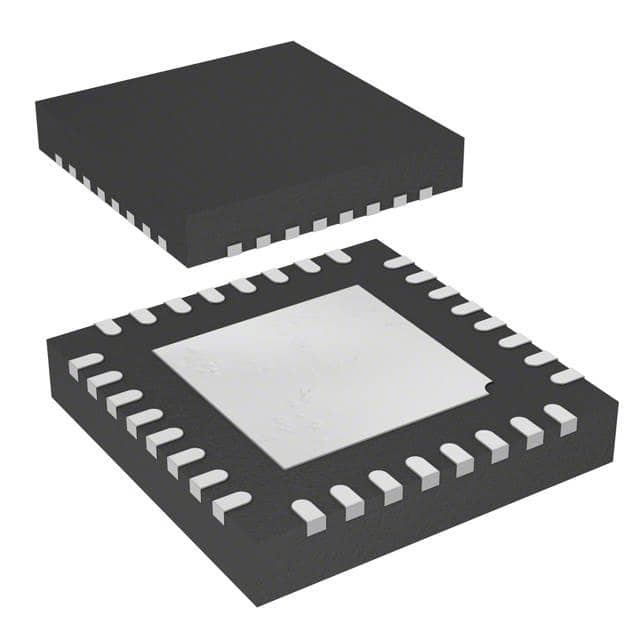

Operating within a voltage range of 2.95V to 5.5V and an ambient temperature range of -40°C to 85°C, the STM8S105K6U6 is suitable for a wide array of applications. It includes 7x10-bit Analog-to-Digital converters and an internal oscillator type. The microcontroller is housed in a 32-VFQFPN Exposed Pad package, designed for surface mounting.



Key electrical characteristics include its 8-bit core size and 25 I/O pins. The RoHS 3 compliant status and MSL 1 rating indicate standard handling and environmental considerations for this component.

STM8S105K6U6 Quick Information

Product Type: Microcontroller
Canonical Name: STM8S105K6U6 Microcontroller
Subcategory: Embedded Microcontrollers

STM8S105K6U6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM8S105K6U6 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM8S105K6U6 Features

  • 8-bit STM8 core processor.
  • 32KB FLASH program memory.
  • 2KB RAM and 1KB EEPROM.
  • 16MHz internal clock speed.
  • Surface mount 32-VFQFPN package.

STM8S105K6U6 Applications

  • Suitable for general embedded control.
  • Interface options include I2C and SPI.
  • Wide operating voltage range.
  • Internal oscillator simplifies design.

STM8S105K6U6 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the program memory size of the STM8S105K6U6?

The program memory size is 32KB (32K x 8).

What is the operating voltage range for this microcontroller?

The operating voltage range is 2.95V to 5.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What package type is the STM8S105K6U6 available in?

It is available in a 32-VFQFPN Exposed Pad package.

What are the main connectivity options?

Connectivity options include I2C, IrDA, LINbus, SPI, and UART/USART.
