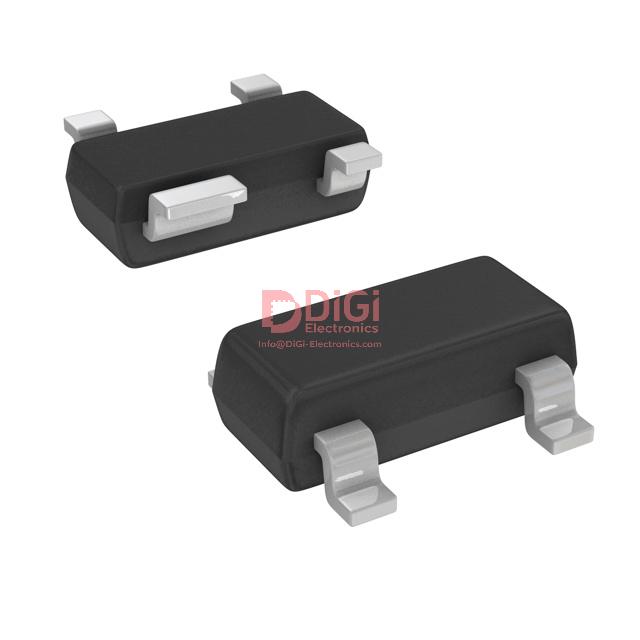

STM6315SDW13F The STMicroelectronics STM6315SDW13F is a supervisor IC designed for power management applications. It features a 2.93V threshold and an open drain output.
Mfr Part #:

STM6315SDW13F

Available from 3 distributors
Mfr Name: ST
ST
The STMicroelectronics STM6315SDW13F is a supervisor IC designed for power management applications. It features a 2.93V threshold and an open drain output.
✓ Total Stock: 125,379 pcs
$ Price Range: $0.75

STM6315SDW13F Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
120,533 pcs
On Request
120533 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,489 pcs
On Request
3489 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,357 pcs
On Request
1357 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM6315SDW13F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Output Type
Programmable
Reset Timeout
View Similar Products (0)

STM6315SDW13F Description

Short technical summary and product information.

The STMicroelectronics STM6315SDW13F is a single-channel supervisor IC from the Power Management (PMIC) category. It is designed to monitor voltage levels and provide a reset signal when a threshold is crossed. This device features a voltage threshold of 2.93V and an active-low reset output that is open drain or open collector. The reset timeout is specified at 112ms.



This supervisor IC is suitable for surface mount applications and comes in a SOT-143-4 package. It operates within a temperature range of -40°C to 125°C (TA). The STM6315SDW13F is part of STMicroelectronics' range of supervisor ICs, offering reliable power monitoring for various electronic systems.

STM6315SDW13F Quick Information

Product Type: Supervisor IC
Canonical Name: STM6315SDW13F Power Management Supervisor IC
Subcategory: Power Management

STM6315SDW13F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM6315SDW13F Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM6315SDW13F Features

  • Monitors a single voltage threshold.
  • Features a 2.93V voltage threshold.
  • Provides open drain or open collector output.
  • Active low reset with 112ms timeout.
  • Surface mount SOT-143-4 package.

STM6315SDW13F Applications

  • Power-on reset for microcontroller systems.
  • Voltage monitoring in industrial control modules.
  • Battery-powered equipment supervision.
  • Automotive electronic control unit reset.

STM6315SDW13F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage threshold for the STM6315SDW13F?

The voltage threshold for the STM6315SDW13F is 2.93V.

What type of output does the STM6315SDW13F have?

The STM6315SDW13F has an open drain or open collector output.

What is the reset timeout duration for the STM6315SDW13F?

The reset timeout duration for the STM6315SDW13F is 112ms.

What is the operating temperature range of the STM6315SDW13F?

The operating temperature range of the STM6315SDW13F is -40°C to 125°C.

What package type is the STM6315SDW13F available in?

The STM6315SDW13F is available in a SOT-143-4 package.

How is the STM6315SDW13F mounted?

The STM6315SDW13F is a surface mount device.
