| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,019 pcs
|
23019 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,932 pcs
|
8932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The STMicroelectronics STM32WLE5JCI6 is a versatile RF Transceiver IC that integrates a microcontroller, making it suitable for a wide range of wireless applications. It supports the 802.15.4 standard and LoRa™ protocol, operating across a frequency range of 150MHz to 960MHz.
This device features a transmit power of 22dBm and a high receiver sensitivity of -148dBm, ensuring robust communication. It is equipped with 256kB of Flash memory and offers various serial interfaces including ADC, GPIO, I²C, SPI, IrDA, UART, and USART. The operating voltage ranges from 1.8V to 3.6V, with current consumption between 63mA and 68mA.

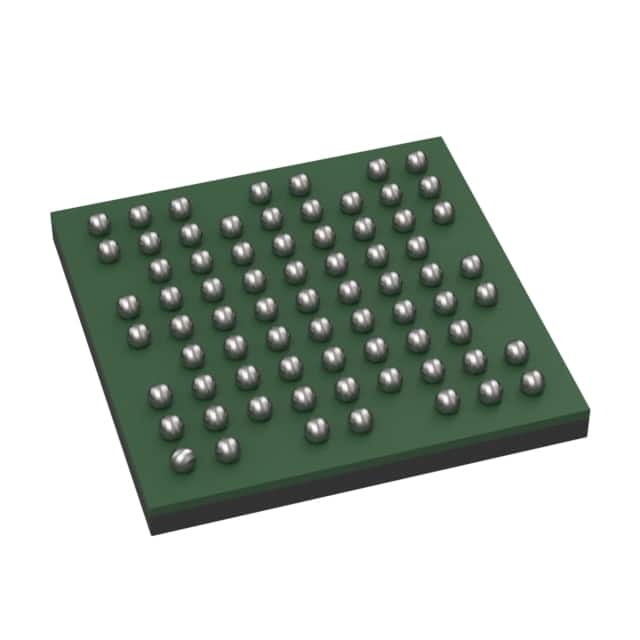

Designed for surface mounting, the STM32WLE5JCI6 comes in a compact 73-UFBGA package measuring 5x5mm. It operates reliably within a temperature range of -40°C to 85°C (TA). The IC supports multiple modulation schemes such as BPSK, GFSK, GMSK, FSK, and MSK, providing flexibility for different communication needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.6V.
It is supplied in a 73-UFBGA package.
The operating temperature range is -40°C to 85°C (TA).
Yes, it is RoHS3 Compliant.
