| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,090 pcs
|
2090 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

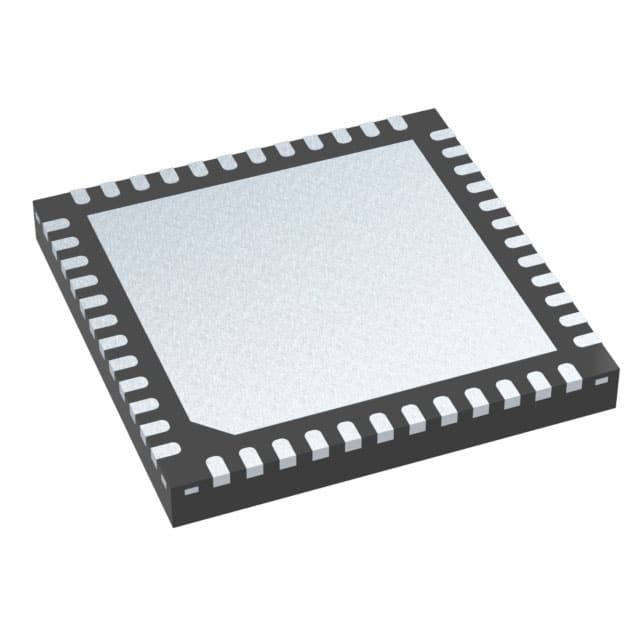

The STMicroelectronics STM32WB55REV6 is a versatile RF Transceiver IC designed for low-power wireless applications. It integrates an ARM core and supports multiple protocols including Bluetooth v5.3, Thread, and Zigbee®, operating in the 2.405GHz to 2.48GHz frequency band.
This device features a wide operating voltage range of 1.71V to 3.6V and consumes between 4.5mA and 7.9mA. Key electrical characteristics include a maximum output power of 6dBm, a receiver sensitivity of -100dBm, and a maximum data rate of 2Mbps using GFSK modulation. It is equipped with 512kB Flash and 256kB SRAM memory, along with 49 GPIO pins and various serial interfaces such as ADC, I²C, SPI, UART, USART, and USB.
The STM32WB55REV6 is supplied in a 68-VFQFN exposed pad package, measuring 8x8mm, and is designed for surface mounting. It operates reliably within an ambient temperature range of -40°C to 85°C. This component is suitable for a wide array of IoT and embedded wireless systems requiring robust connectivity and low power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.71V to 3.6V.
It comes in a 68-VFQFN Exposed Pad package (8x8mm).
-40°C to 85°C.
Yes, it is RoHS3 compliant.
