STM32WB15CCU6 The STMicroelectronics STM32WB15CCU6 is an ultra-low-power dual-core ARM RF Transceiver IC supporting Bluetooth v5.2. It operates at 2.4GHz with a maximum data rate of 2Mbps.
Mfr Part #:

STM32WB15CCU6

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STM32WB15CCU6 is an ultra-low-power dual-core ARM RF Transceiver IC supporting Bluetooth v5.2. It operates at 2.4GHz with a maximum data rate of 2Mbps.
✓ Total Stock: 37,949 pcs
$ Price Range: $3.43

STM32WB15CCU6 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
29,875 pcs
On Request
29875 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
6,240 pcs
On Request
6240 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,834 pcs
On Request
1834 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM32WB15CCU6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
GPIO
Lead Spacing
Memory Size
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

STM32WB15CCU6 Description

Short technical summary and product information.

The STMicroelectronics STM32WB15CCU6 is an ultra-low-power dual-core ARM RF Transceiver IC with integrated MCU capabilities. It supports Bluetooth v5.2 protocol and operates in the 2.4GHz frequency band, achieving a maximum data rate of 2Mbps.



This device features a transmit power of 5.5dBm and a receiver sensitivity of -95.5dBm, utilizing GFSK modulation. It is equipped with 320kB of Flash memory and 48kB of SRAM, along with 30 GPIO pins. The operating voltage range is from 1.71V to 3.6V, with current consumption between 4.5mA and 7.7mA.

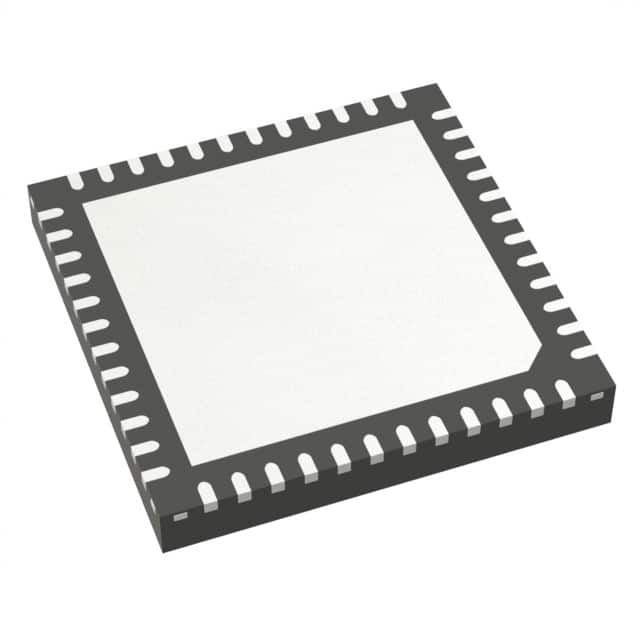

Designed for surface mounting, the STM32WB15CCU6 comes in a 48-UFQFN exposed pad package (7x7mm). It operates within an ambient temperature range of -40°C to 105°C. The IC supports various serial interfaces including ADC, I²C, SPI, UART, and USART, making it suitable for a wide range of wireless communication applications.

STM32WB15CCU6 Quick Information

Product Type: RF Transceiver IC
Canonical Name: STMicroelectronics STM32WB15CCU6 RF Transceiver IC
Subcategory: TxRx + MCU

STM32WB15CCU6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM32WB15CCU6 Estimated Pricing

Qty Low High
1+ $3.43 $3.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM32WB15CCU6 Features

  • Ultra-low-power dual-core ARM RF Transceiver IC.
  • Bluetooth v5.2 support at 2.4GHz frequency.
  • 320kB Flash and 48kB SRAM memory.
  • High receiver sensitivity of -95.5dBm.
  • Surface mount 48-UFQFN exposed pad package.

STM32WB15CCU6 Applications

  • Ideal for IoT device connectivity.
  • Suitable for wireless sensor networks.
  • Used in portable electronic devices.
  • Enables Bluetooth mesh networking.

STM32WB15CCU6 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the STM32WB15CCU6?

The operating voltage range is 1.71V to 3.6V.

What package type does the STM32WB15CCU6 come in?

It comes in a 48-UFQFN exposed pad package.

What is the operating temperature range of the STM32WB15CCU6?

The operating temperature range is from -40°C to 105°C.

Is the STM32WB15CCU6 RoHS compliant?

Yes, it is RoHS3 compliant.
