| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage | |
| Voltage Supply |
The STMicroelectronics STM32F769NGH6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core. It is designed for demanding embedded applications requiring significant processing power and memory.
This microcontroller features 1MB of Flash program memory and 512KB of RAM, enabling complex software execution and data handling. It operates at a clock speed of 216MHz, providing fast processing capabilities. The device includes a comprehensive set of peripherals such as DMA, I²S, LCD, PWM, and WDT, along with extensive connectivity options including CANbus, Ethernet, I²C, SPI, and USB OTG.
With 168 I/O pins, the STM32F769NGH6 offers flexibility for system integration. It supports a supply voltage range of 1.7V to 3.6V and operates within an ambient temperature range of -40°C to 85°C. The microcontroller is equipped with 24-channel 12-bit Analog-to-Digital converters and 2-channel 12-bit Digital-to-Analog converters.

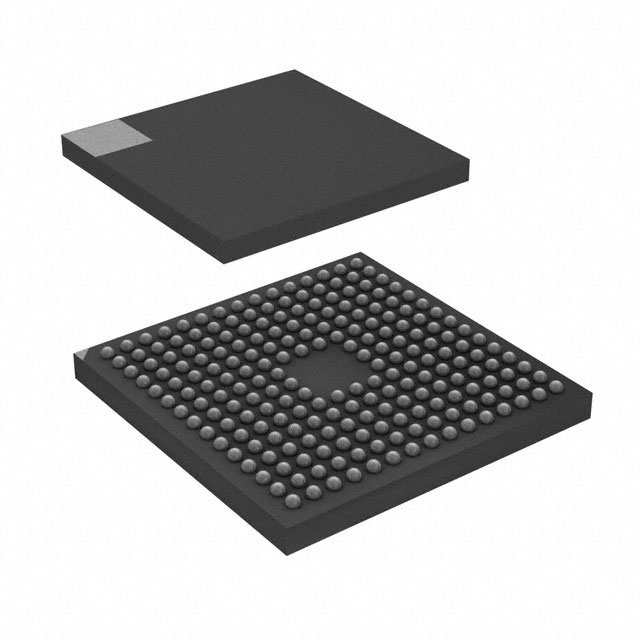

The STM32F769NGH6 is supplied in a 216-TFBGA package and is designed for surface mounting. Its robust feature set makes it suitable for a wide array of applications in industrial automation, consumer electronics, and IoT devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.7V to 3.6V.
The operating temperature range is -40°C to 85°C (TA).
The program memory size is 1MB (1M x 8).
It uses FLASH program memory.
The RAM size is 512K x 8.
It has a 32-Bit Single-Core processor.
Connectivity includes CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG.
