STM32F429ZGY6TR The STMicroelectronics STM32F429ZGY6TR is a 32-bit ARM Cortex-M4 microcontroller featuring a 180MHz core, 1MB of Flash memory, and 256KB of RAM. It is designed for embedded applications requiring robust processing capabilities.
Mfr Part #:

STM32F429ZGY6TR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STM32F429ZGY6TR is a 32-bit ARM Cortex-M4 microcontroller featuring a 180MHz core, 1MB of Flash memory, and 256KB of RAM. It is designed for embedded applications requiring robust processing capabilities.
✓ Total Stock: 5,000 pcs
$ Price Range: $6.40

STM32F429ZGY6TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM32F429ZGY6TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

STM32F429ZGY6TR Description

Short technical summary and product information.

The STM32F429ZGY6TR from STMicroelectronics is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core. It operates at a speed of 180MHz and offers 1MB of Flash program memory and 256KB of RAM, making it suitable for demanding embedded systems.



This microcontroller includes a comprehensive set of peripherals such as Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, and WDT. Connectivity options are extensive, including CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, and USB OTG, providing flexibility for various communication needs. It features 24 channels of 12-bit Analog-to-Digital converters and 2 channels of 12-bit Digital-to-Analog converters.

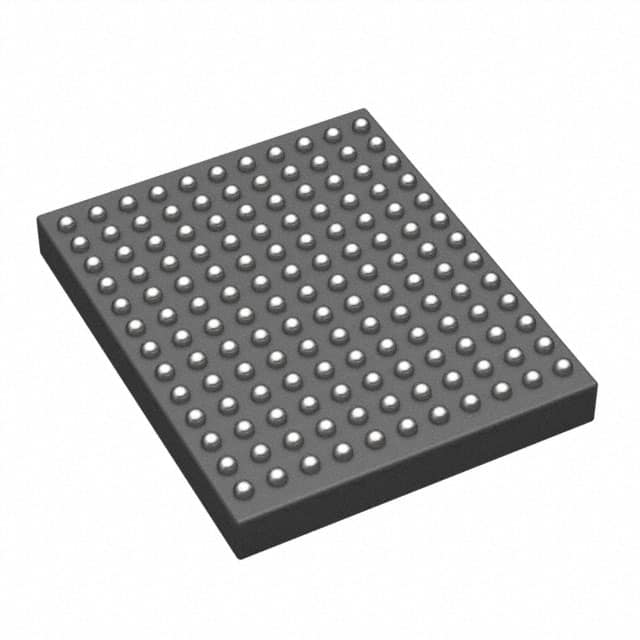

The STM32F429ZGY6TR is housed in a 143-WLCSP surface mount package, designed for efficient board space utilization. It operates within a voltage range of 1.8V to 3.6V and has an operating temperature range of -40°C to 85°C (TA). The internal oscillator ensures stable clock generation.

STM32F429ZGY6TR Quick Information

Product Type: Microcontroller
Series: STM32F4
Canonical Name: STM32F429ZGY6TR ARM Cortex-M4 Microcontroller IC
Subcategory: Embedded Microcontrollers

STM32F429ZGY6TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM32F429ZGY6TR Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM32F429ZGY6TR Features

  • 180MHz ARM Cortex-M4 32-bit core.
  • 1MB Flash and 256KB RAM memory.
  • Extensive peripheral set for control.
  • Multiple connectivity interfaces supported.
  • 143-WLCSP surface mount package.

STM32F429ZGY6TR Applications

  • Suitable for embedded control systems.
  • Ideal for data acquisition applications.
  • Used in communication interface designs.
  • Applicable in industrial automation.

STM32F429ZGY6TR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the STM32F429ZGY6TR?

The operating voltage is 1.8V to 3.6V.

What package type is the STM32F429ZGY6TR microcontroller?

It is supplied in a 143-WLCSP surface mount package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 85°C (TA).

Is the STM32F429ZGY6TR RoHS compliant?

Yes, this part is RoHS3 Compliant.
