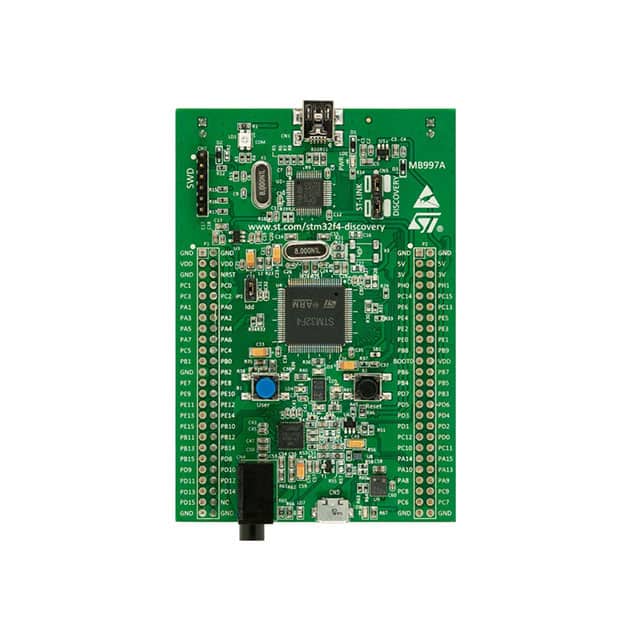

The STM32F407G-DISC1 Discovery kit from STMicroelectronics is a complete evaluation platform for the STM32F407VGT6 microcontroller. The MCU features a 32-bit ARM Cortex-M4 with FPU core, 1 Mbyte of Flash memory, and 192 Kbytes of RAM in an LQFP100 package.
The board includes an on-board ST-LINK/V2-A debugger with USB re-enumeration supporting debug port, virtual COM port, and mass storage interfaces. It is powered via USB bus or an external 5 V supply, and provides 3 V and 5 V external application supply voltages.
On-board peripherals include a LIS302DL or LIS3DSH MEMS 3-axis accelerometer, MP45DT02 digital microphone, and CS43L22 audio DAC with integrated class D speaker driver. The board features eight LEDs, two push-buttons, and a USB OTG FS with micro-AB connector. All LQFP100 I/Os are available on extension headers for prototyping.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.13 | $30.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The board uses the STM32F407VGT6 microcontroller with a 32-bit ARM Cortex-M4 with FPU core.
The MCU has 1 Mbyte of Flash memory and 192 Kbytes of RAM.
The board includes an on-board ST-LINK/V2-A debugger.
The board includes a LIS302DL or LIS3DSH MEMS 3-axis accelerometer and an MP45DT02 digital microphone.
The board can be powered via USB bus or an external 5 V supply. External application supply voltages of 3 V and 5 V are available.
