STM32F103VBH7 The STMicroelectronics STM32F103VBH7 is a 32-bit microcontroller based on the ARM Cortex-M3 core. It offers 128KB of Flash memory and operates at speeds up to 72MHz.
Mfr Part #:

STM32F103VBH7

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STM32F103VBH7 is a 32-bit microcontroller based on the ARM Cortex-M3 core. It offers 128KB of Flash memory and operates at speeds up to 72MHz.
✓ Total Stock: 2,624 pcs
$ Price Range: $6.40

STM32F103VBH7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2,624 pcs
On Request
2624 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM32F103VBH7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of ADCs
Number of I
Number of I/O
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

STM32F103VBH7 Description

Short technical summary and product information.

The STM32F103VBH7 from STMicroelectronics is a medium-density performance line microcontroller built around the ARM 32-bit Cortex-M3 CPU. This device operates at a maximum frequency of 72 MHz, delivering 1.25 DMIPS/MHz performance. It features 128 KB of Flash memory and 20 KB of SRAM.



Connectivity options include up to 9 communication interfaces such as CANbus, I²C, IrDA, LINbus, SPI, UART/USART, and USB 2.0 full-speed. It is equipped with 2 x 12-bit Analog-to-Digital converters and up to 80 fast I/O ports. Peripherals include DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temperature Sensor, and WDT.

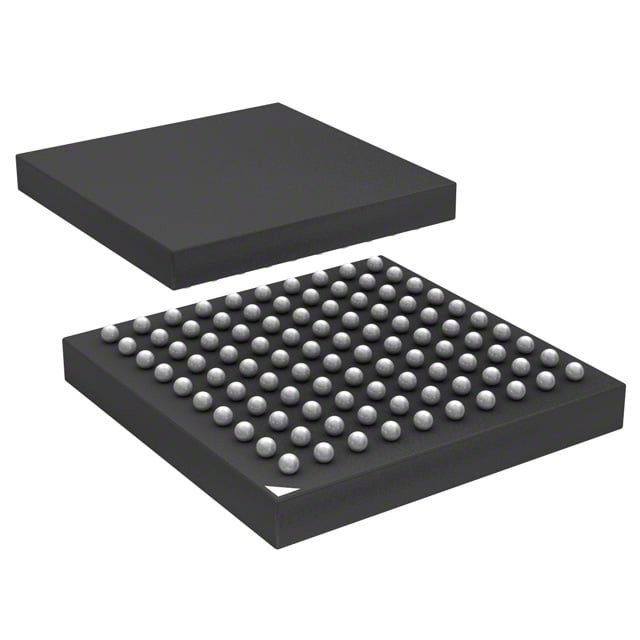

The microcontroller is housed in a 100-LFBGA package and supports surface mount installation. It operates within a voltage range of 2V to 3.6V and has an operating temperature range of -40°C to 105°C (TA). The internal oscillator type is utilized for clock generation.

STM32F103VBH7 Quick Information

Product Type: Microcontroller
Series: STM32F1
Canonical Name: STMicroelectronics STM32F103VBH7 Microcontroller
Subcategory: Embedded Microcontrollers

STM32F103VBH7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM32F103VBH7 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM32F103VBH7 Features

  • ARM Cortex-M3 32-bit core processor.
  • 72 MHz maximum operating frequency.
  • 128 KB Flash memory and 20 KB SRAM.
  • Up to 9 communication interfaces supported.
  • 100-LFBGA surface mount package.

STM32F103VBH7 Applications

  • Suitable for embedded control systems.
  • Ideal for data acquisition applications.
  • Used in communication interface designs.
  • Applicable for motor control systems.

STM32F103VBH7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the STM32F103VBH7?

The STM32F103VBH7 features an ARM Cortex-M3 32-bit core processor.

What is the operating speed of the STM32F103VBH7 microcontroller?

The STM32F103VBH7 operates at a maximum frequency of 72 MHz.

How much Flash memory does the STM32F103VBH7 have?

The STM32F103VBH7 has 128 KB of Flash memory.

What is the operating voltage range for the STM32F103VBH7?

The STM32F103VBH7 operates within a voltage range of 2V to 3.6V.

What package type is the STM32F103VBH7 available in?

The STM32F103VBH7 is available in a 100-LFBGA package.

What is the operating temperature range for the STM32F103VBH7?

The operating temperature range for the STM32F103VBH7 is -40°C to 105°C (TA).

What programming and debugging interfaces does the STM32F103VBH7 support?

The STM32F103VBH7 supports SWD and JTAG interfaces for programming and debugging.
