Mfr Part #:

STM1061N31WX6F

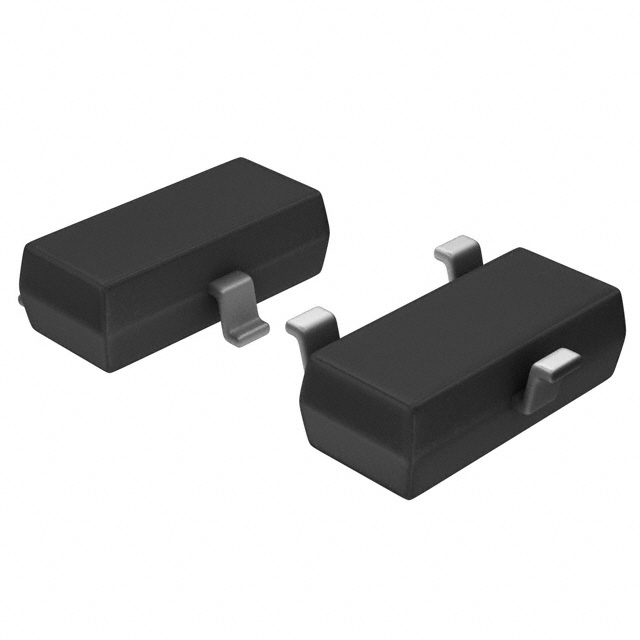

The STMicroelectronics STM1061N31WX6F is a supervisory circuit with a 3.1V threshold voltage and an active low, open drain output. It is supplied in a SOT-23-3 package.

✓ Total Stock: 580,904 pcs

$ Price Range: $0.75

STM1061N31WX6F Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	459,000 pcs On Request	459000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Romaks Technologies ✓ Non-Authorised Inventory information	95,158 pcs On Request	95158 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Seba Components ✓ Non-Authorised Inventory information	12,000 pcs On Request	12000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Risen Electronics ✓ Non-Authorised Inventory information	10,000 pcs On Request	10000 pcs	On Request	1	On Request	On Request	On Request	On Request	2026-02-16 21:33:16
Smaxon Electronics ✓ Non-Authorised Inventory information	4,746 pcs On Request	4746 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

STM1061N31WX6F Description

Short technical summary and product information.

The STM1061N31WX6F from STMicroelectronics is a supervisory circuit designed for voltage monitoring applications. It features a single voltage monitoring input with a threshold voltage of 3.1V. The output is active low and open drain, suitable for signaling reset conditions.

This component operates within a supply voltage range of 0.7V to 6V and consumes a low operating supply current of 3.6 uA. It has a reset timeout of 30µs typical propagation delay. The device is designed to operate in a wide temperature range from -40°C to +85°C.

The STM1061N31WX6F is available in a compact SOT-23-3 surface mount package, making it suitable for space-constrained designs. It is typically supplied on a reel, with a factory pack quantity of 3000 units.

STM1061N31WX6F Quick Information

Product Type: Supervisory Circuit

Series: Stm1061

Canonical Name: STM1061N31WX6F Supervisory Circuit

Subcategory: Power Management ICs

STM1061N31WX6F Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

STM1061N31WX6F Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM1061N31WX6F Features

Monitors a single voltage level.
3.1V threshold voltage.
Active low, open drain output.
Wide operating temperature range.
Compact SOT-23-3 package.

STM1061N31WX6F Applications

System power-on reset.
Voltage monitoring circuits.
Microprocessor voltage supervision.
Battery-powered devices.

STM1061N31WX6F FAQs

7 frequently asked questions generated from this part’s specifications.

What is the threshold voltage of the STM1061N31WX6F?

The threshold voltage is 3.1V, with an overvoltage threshold of 3.162V and an undervoltage threshold of 3.038V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What is the package type?

The device is available in a SOT-23-3 surface-mount package.

What is the output type?

The output is active-low, open-drain.

What is the typical supply current?

The typical operating supply current is 3.6 µA.

Does it have a manual reset or watchdog timer?

No, it does not have a manual reset or watchdog timer.

What is the supply voltage range?

The supply voltage range is 0.7V to 6V.

Category	Supervisors
Manufacturer Name	STMicroelectronics
Failure Rate	Stm1061
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature	-40°C ~ 85°C (TA)
Output	Open Drain or Open Collector
Output Type	Active Low, Open Drain
Reset	Active Low
Reset Timeout	30µs Typical Propagation Delay
Supplier Device Package	SOT-23-3
Type	3.1V
Voltage	3.1V
