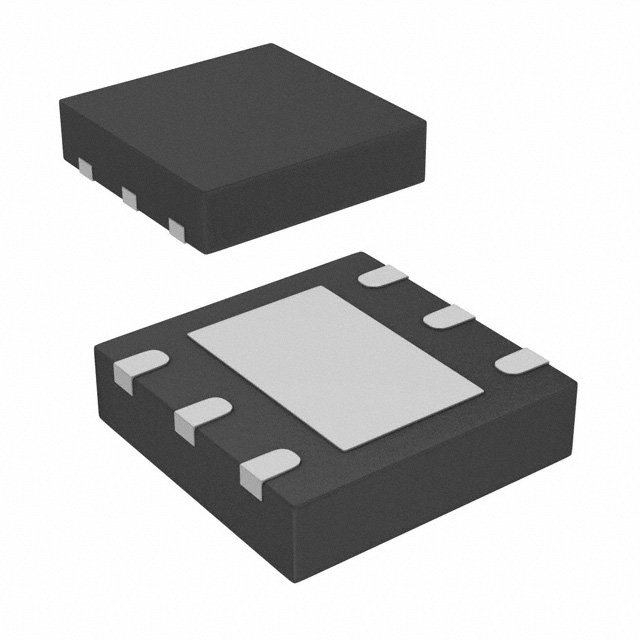

STLQ020PUR The STMicroelectronics STLQ020PUR is an LDO voltage regulator with an adjustable output voltage range of 0.8V to 4.5V and a 200mA output current. It is designed for surface mount applications in a 6-DFN package.
Mfr Part #:

STLQ020PUR

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STLQ020PUR is an LDO voltage regulator with an adjustable output voltage range of 0.8V to 4.5V and a 200mA output current. It is designed for surface mount applications in a 6-DFN package.
✓ Total Stock: 66,000 pcs
$ Price Range: $0.28

STLQ020PUR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
48,000 pcs
On Request
48000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STLQ020PUR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Failure Rate
Input Voltage
Mounting Type
Number of Outputs
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
PSRR
Product Type
Protection Features
Quiescent Current
SVHC Present
Supplier Device Package
Type
Voltage
Voltage Dropout (Max)
View Similar Products (0)

STLQ020PUR Description

Short technical summary and product information.

The STMicroelectronics STLQ020PUR is a linear low-dropout (LDO) voltage regulator designed for power management applications. It offers an adjustable output voltage ranging from 0.8V to 4.5V and can supply up to 200mA of current. The device features a low quiescent current of 100µA and a dropout voltage of 160mV at 200mA, making it suitable for power-sensitive designs.



Key electrical characteristics include a wide input voltage range of 2V to 5.5V, high PSRR of 60dB, and protection features such as over-current and over-temperature shutdown. The regulator operates across a temperature range of -40°C to 125°C.



Packaged in a compact 6-DFN (2x2) surface-mount configuration, the STLQ020PUR is ideal for applications where space is limited. Its adjustable output and robust protection make it a versatile choice for various electronic circuits requiring stable voltage regulation.

STLQ020PUR Quick Information

Product Type: LDO Voltage Regulator
Series: stlq020
Canonical Name: STMicroelectronics STLQ020PUR LDO Voltage Regulator
Subcategory: PMIC - Power Management ICs

STLQ020PUR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STLQ020PUR Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

STLQ020PUR Features

  • Adjustable output voltage from 0.8V to 4.5V.
  • Provides up to 200mA output current.
  • Low quiescent current of 100µA.
  • Wide operating temperature range of -40°C to 125°C.
  • Compact 6-DFN surface-mount package.

STLQ020PUR Applications

  • Suitable for portable electronic devices.
  • Ideal for battery-powered applications.
  • Used in power management circuits.
  • Applicable in space-constrained designs.

STLQ020PUR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the STLQ020PUR?

2V to 5.5V.

What package does the STLQ020PUR come in?

6-DFN (2x2mm) surface mount package.

What is the operating temperature range of the STLQ020PUR?

-40°C to 125°C (junction temperature).

What is the quiescent current of the STLQ020PUR?

100µA typical.

What protection features does the STLQ020PUR include?

Over current and over temperature protection.

What is the dropout voltage of the STLQ020PUR?

160mV typical at 200mA output current.

Is the output voltage of the STLQ020PUR adjustable?

Yes, output voltage is adjustable from 0.8V to 4.5V using an external resistor divider.
