| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

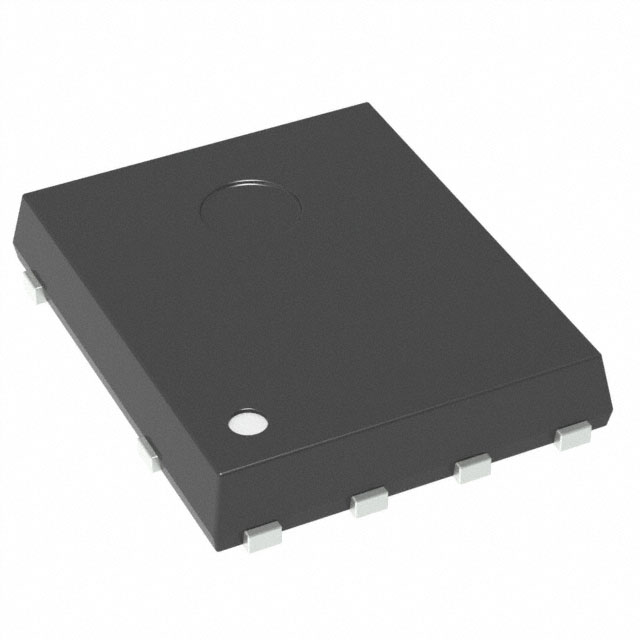

The STL7LN65K5AG from STMicroelectronics is a single N-Channel MOSFET. It is designed for power applications with a maximum drain-to-source voltage (Vdss) of 650V and a continuous drain current of 5A at a case temperature.
This MOSFET features a low on-resistance (Rds On) of 1.5 Ohm maximum at 2.5A and 10V gate-source voltage. The input capacitance (Ciss) is 270 pF maximum at 100V, and the gate charge (Qg) is 11.7 nC maximum at 10V.
Operating within a temperature range of -55°C to 150°C (TJ), the STL7LN65K5AG has a maximum power dissipation of 79W (Tc). It is housed in a Surface Mount package, specifically the 8-PowerVDFN, with the supplier device package identified as PowerFlat™ (5x6) VHV.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 650V.
The continuous drain current is 5A.
The operating temperature range is -55°C to 150°C (TJ).
It is available in a Surface Mount 8-PowerVDFN package.
Yes, it is RoHS3 compliant.
The Moisture Sensitivity Level is 1 Unlimited.
