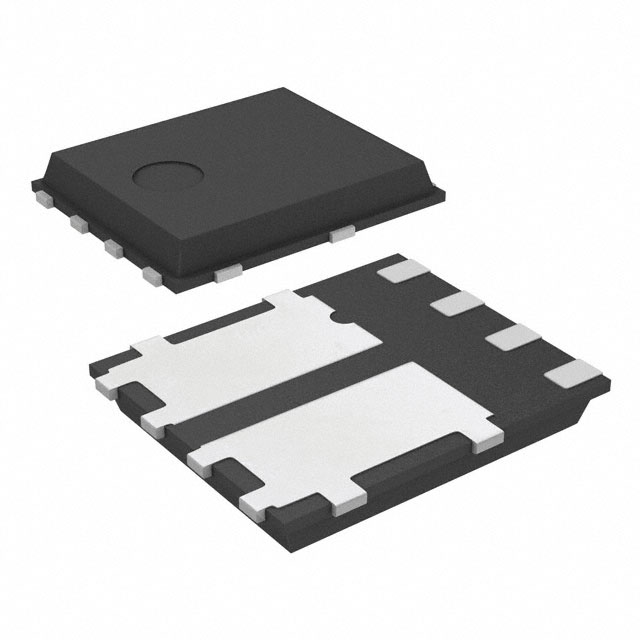

STL7DN6LF3 The STMicroelectronics STL7DN6LF3 is a dual N-channel MOSFET designed for 60V operation with a continuous drain current of 20A. It features a logic level gate and surface mount packaging.
Mfr Part #:

STL7DN6LF3

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STL7DN6LF3 is a dual N-channel MOSFET designed for 60V operation with a continuous drain current of 20A. It features a logic level gate and surface mount packaging.
✓ Total Stock: 48,000 pcs
$ Price Range: $1.64

STL7DN6LF3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
48,000 pcs
On Request
48000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STL7DN6LF3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

STL7DN6LF3 Description

Short technical summary and product information.

The STMicroelectronics STL7DN6LF3 is a dual N-channel MOSFET belonging to the Transistors - FETs, MOSFETs - Arrays category. It is rated for a drain-to-source voltage (Vdss) of 60V and can handle a continuous drain current of 20A. This MOSFET features a logic level gate, making it suitable for lower voltage drive applications.



With a maximum on-resistance (Rds On) of 43mOhm at 3A and 10V, and a gate charge (Qg) of 8.8nC at 10V, the STL7DN6LF3 offers efficient switching characteristics. The gate threshold voltage (Vgs(th)) is a maximum of 3V at 250µA. It dissipates up to 52W of power and operates within a temperature range of -55°C to 175°C (TJ).



The device is packaged in an 8-PowerVDFN configuration with surface mount technology. The supplier device package is specified as PowerFlat™ (5x6). Its input capacitance (Ciss) is a maximum of 432pF at 25V.

STL7DN6LF3 Quick Information

Product Type: MOSFET Array
Canonical Name: STL7DN6LF3 Dual N-Channel 60V 20A MOSFET
Subcategory: Dual N-Channel

STL7DN6LF3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STL7DN6LF3 Estimated Pricing

Qty Low High
1+ $1.64 $1.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

STL7DN6LF3 Features

  • Dual N-Channel MOSFET configuration.
  • 60V drain-to-source voltage rating.
  • 20A continuous drain current.
  • Logic Level Gate feature.
  • Surface Mount 8-PowerVDFN package.

STL7DN6LF3 Applications

  • Used in DC-DC converter circuits.
  • Ideal for motor drive applications.
  • Suitable for load switching tasks.
  • Works in synchronous rectification designs.

STL7DN6LF3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the STL7DN6LF3?

The drain-source voltage (Vdss) is 60V.

What package does the STL7DN6LF3 come in?

It is available in an 8-PowerVDFN package (PowerFlat 5x6).

What is the operating temperature range?

The junction temperature range is -55°C to 175°C.

What is the maximum on-resistance?

The maximum on-resistance is 43mOhm at 3A drain current and 10V gate drive.

Does the STL7DN6LF3 have a logic level gate?

Yes, it features a logic level gate for low-voltage drive.

What is the gate charge of the STL7DN6LF3?

The maximum gate charge is 8.8nC at 10V gate-source voltage.

What is the input capacitance?

The maximum input capacitance is 432pF at 25V drain-source voltage.
