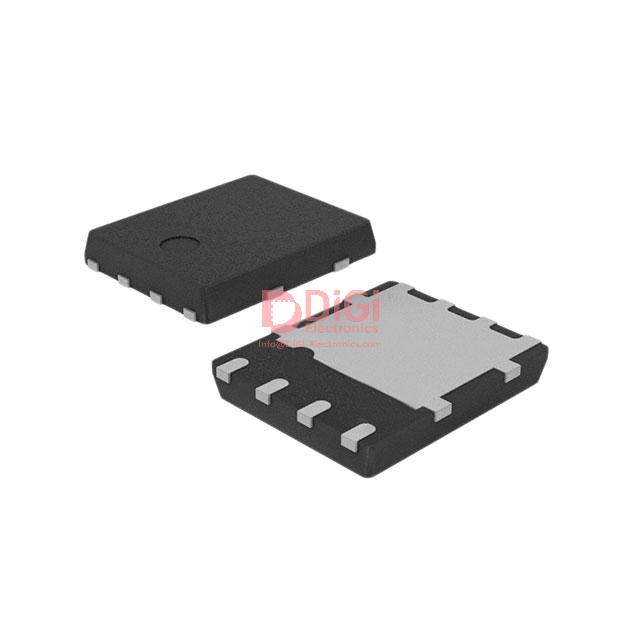

STL60NH3LL The STMicroelectronics STL60NH3LL is an N-Channel MOSFET with a 30V drain-source voltage and 30A continuous drain current. It features a low Rds On of 8.5mOhm at 8A, 10V.
Mfr Part #:

STL60NH3LL

Available from 1 distributors
Mfr Name: NA
NA
The STMicroelectronics STL60NH3LL is an N-Channel MOSFET with a 30V drain-source voltage and 30A continuous drain current. It features a low Rds On of 8.5mOhm at 8A, 10V.
✓ Total Stock: 2,912 pcs

STL60NH3LL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,912 pcs
On Request
2912 pcs On Request 1 On Request On Request 06+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STL60NH3LL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
FET Type
Gate Charge
Input Capacitance
Lead Style
Mounting Type
Package / Case
Technology
View Similar Products (0)

STL60NH3LL Description

Short technical summary and product information.

The STMicroelectronics STL60NH3LL is an N-Channel MOSFET designed for power applications. It offers a 30V drain-to-source voltage and can handle a continuous drain current of 30A at 25°C.



Key electrical characteristics include a maximum on-resistance of 8.5mOhm at 8A and 10V gate-source voltage, and a gate threshold voltage of 1V at 250µA. The maximum gate source voltage is ±16V, and the gate charge is 24nC at 4.5V.



This MOSFET utilizes Metal Oxide Semiconductor (MOSFET) technology and is housed in a surface-mount PowerFlat™ (5x6) package. The drive voltage ranges from 4.5V to 10V.

STL60NH3LL Quick Information

Product Type: MOSFET
Series: STripFET™
Canonical Name: STMicroelectronics STL60NH3LL N-Channel MOSFET
Subcategory: Single FETs, MOSFETs

STL60NH3LL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STL60NH3LL Features

  • N-Channel MOSFET technology.
  • 30V drain-to-source voltage.
  • 30A continuous drain current.
  • 8.5mOhm maximum on-resistance.
  • Surface mount PowerFlat™ package.

STL60NH3LL Applications

  • Used in DC-DC converters
  • Suitable for load switching
  • Power management in portable devices
  • Battery protection circuits
  • Motor drive applications

STL60NH3LL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the STL60NH3LL?

The maximum drain-to-source voltage is 30V.

What is the continuous drain current of the STL60NH3LL at 25°C?

The continuous drain current is 30A (Tc).

What is the maximum on-resistance (Rds On) for the STL60NH3LL?

The maximum Rds On is 8.5mOhm at 8A drain current and 10V gate-source voltage.

What is the gate threshold voltage (Vgs(th)) for the STL60NH3LL?

The maximum gate threshold voltage is 1V at 250µA.

What is the maximum gate charge (Qg) for the STL60NH3LL?

The maximum gate charge is 24nC at 4.5V gate-source voltage.

What is the maximum gate-source voltage (Vgs) for the STL60NH3LL?

The maximum gate-source voltage is ±16V.

What type of package is the STL60NH3LL in?

The STL60NH3LL is in a surface mount PowerFlat™ (5x6) package.
