| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,000 pcs
|
48000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,100 pcs
|
3100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

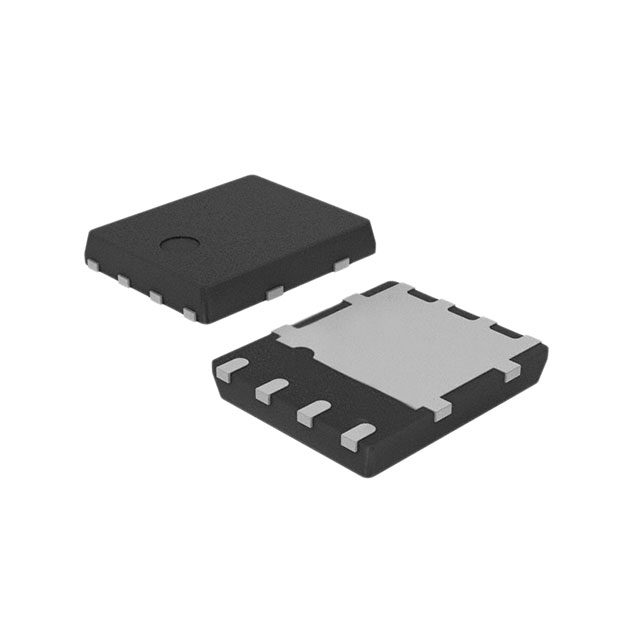

The STL42P6LLF6 from STMicroelectronics is a P-Channel MOSFET with a Metal Oxide semiconductor technology. It is designed for surface mount applications and comes in a PowerFlat™ (5x6) package, also known as 8-PowerVDFN.
This MOSFET boasts a drain-to-source voltage (Vdss) of 60V and can handle a continuous drain current of 42A at a case temperature (Tc). Its maximum power dissipation is rated at 100W (Tc). The on-resistance (Rds On) is a maximum of 26mOhm at 4.5A and 10V gate-source voltage.
Key electrical characteristics include a gate charge (Qg) of 30 nC at 4.5V Vgs, an input capacitance (Ciss) of 3780 pF at 25V Vds, and a gate threshold voltage (Vgs(th)) of 2.5V at 250µA. The maximum gate-source voltage is ±20V. The operating temperature range is up to 175°C (TJ).
Compliance information indicates RoHS3 compliance and an MSL rating of 1. REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60V.
42A at case temperature.
26mOhm maximum at 4.5A drain current and 10V gate-source voltage.
30nC maximum at 4.5V gate-source voltage.
Maximum 175°C.
8-PowerVDFN surface-mount package with PowerFlat (5x6) footprint.
2.5V maximum at 250µA drain current.
