The STMicroelectronics STL36N55M5 is a robust N-Channel MOSFET suitable for various power applications. It features a high drain-to-source voltage (Vdss) of 550V and can handle a continuous current of 22.5A at a case temperature (Tc). The MOSFET exhibits a low on-resistance (Rds On) of 90mOhm at a gate-source voltage (Vgs) of 10V and a drain current (Id) of 16.5A, ensuring efficient power transfer.
Designed for surface mounting, this MOSFET comes in an 8-PowerVDFN package, also known as PowerFlat™ (8x8) HV. It operates within a temperature range of -55°C to 150°C (TJ). Key electrical characteristics include an input capacitance (Ciss) of 2670 pF at 100V and a gate charge (Qg) of 62 nC at 10V. The maximum gate-to-source voltage is ±25V, and the gate threshold voltage (Vgs(th)) is 5V at 250µA.
This MOSFET utilizes Metal Oxide technology and is rated for a maximum power dissipation of 150W when considering case temperature. Its compliance status includes RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these are based on available database information and may require verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 550 V.
The continuous current rating is 22.5A when measured at the case temperature (Tc).
The maximum on-resistance (Rds On) is 90mOhm when measured at a drain current of 16.5A and a gate-source voltage of 10V.

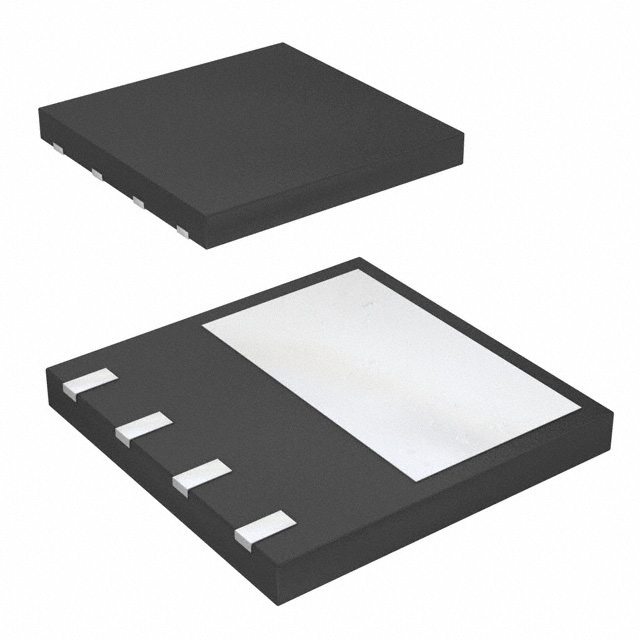

The STL36N55M5 is in an 8-PowerVDFN package, also referred to as PowerFlat™ (8x8) HV.
The STL36N55M5 is designed for surface mounting.
The operating temperature range (TJ) is up to 150°C.
