| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,146 pcs
|
4146 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The STMicroelectronics STL30P3LLH6 is a P-Channel MOSFET designed for power applications. It features a maximum drain-source voltage of 30V and a continuous current rating of 30A at the case temperature.
This MOSFET offers a low on-resistance of 30mOhm at a gate-source voltage of 10V and a drain current of 4.5A. It operates at a maximum junction temperature of 175°C and has a power dissipation of 75W at the case temperature.

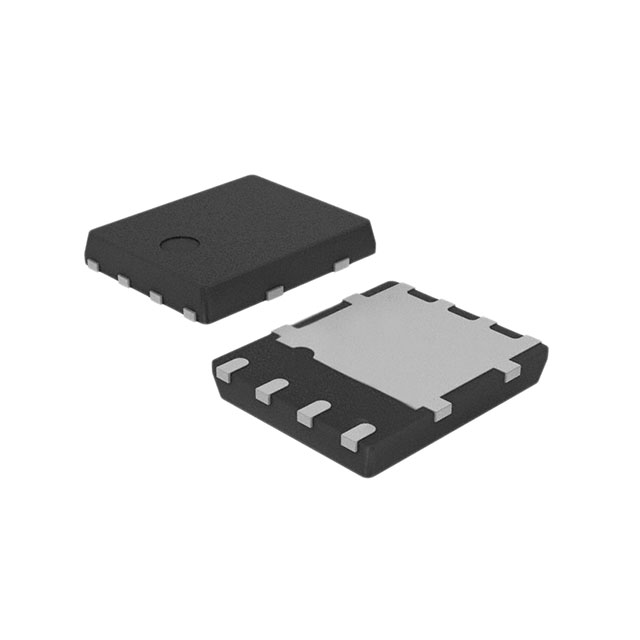

The device is packaged in an 8-PowerVDFN (PowerFlat™ 5x6) and is designed for surface mounting. It utilizes MOSFET (Metal Oxide) technology and is suitable for various power switching applications.
Key electrical characteristics include an input capacitance of 1450pF and a gate charge of 12nC. The gate-source voltage range is ±20V, with a gate threshold voltage of 1V at 250µA.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) for the STL30P3LLH6 is 30V.
The STL30P3LLH6 has a continuous current rating of 30A at the case temperature.
The maximum on-resistance (Rds On) for the STL30P3LLH6 is 30mOhm at a drain current of 4.5A and gate-source voltage of 10V.
The STL30P3LLH6 can operate at a maximum junction temperature of 175°C.
The STL30P3LLH6 is supplied in an 8-PowerVDFN package, also referred to as PowerFlat™ (5x6).
The STL30P3LLH6 is designed for surface mounting.
