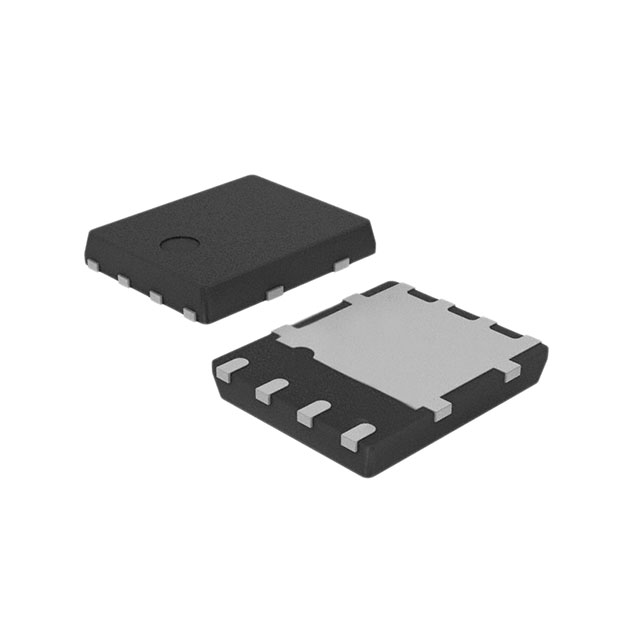

The STMicroelectronics STL120N8F7 is an N-Channel MOSFET with a drain-source voltage (Vdss) of 80V and a continuous drain current (Id) of 120A at a case temperature (Tc). It offers a low on-resistance (Rds On) of 4.4mOhm at 11.5A and 10V gate-source voltage (Vgs).
This MOSFET operates within a temperature range of -55°C to 175°C (TJ) and has a gate charge (Qg) of 60 nC at 10V. The input capacitance (Ciss) is 4570 pF at 25V.
Packaged in an 8-PowerVDFN format with a PowerFlat™ (5x6) supplier device package, it is designed for surface mount applications. The device has a maximum power dissipation of 4.8W when mounted on a PCB (Ta) and 140W when cooled via the case (Tc).
It utilizes MOSFET (Metal Oxide) technology and has a gate threshold voltage (Vgs(th)) of 4V at 250µA. The maximum gate-source voltage (Vgs) is ±20V, and the drive voltage is 10V.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80V
8-PowerVDFN surface mount package
-55°C to 175°C
120A at case temperature
4V at 250µA drain current
140W maximum power dissipation
