The STL110N10F7 from STMicroelectronics is a high-performance N-Channel MOSFET. It is designed for demanding power applications, featuring a robust 100V drain-to-source voltage rating and a significant continuous drain current capability of 107A at a case temperature.
This MOSFET boasts a low on-resistance of just 6mOhm at 10A and 10V Vgs, ensuring efficient power transfer and minimizing heat generation. The gate charge is specified at 72nC maximum at 10V, and the input capacitance is 5117pF maximum at 50V.

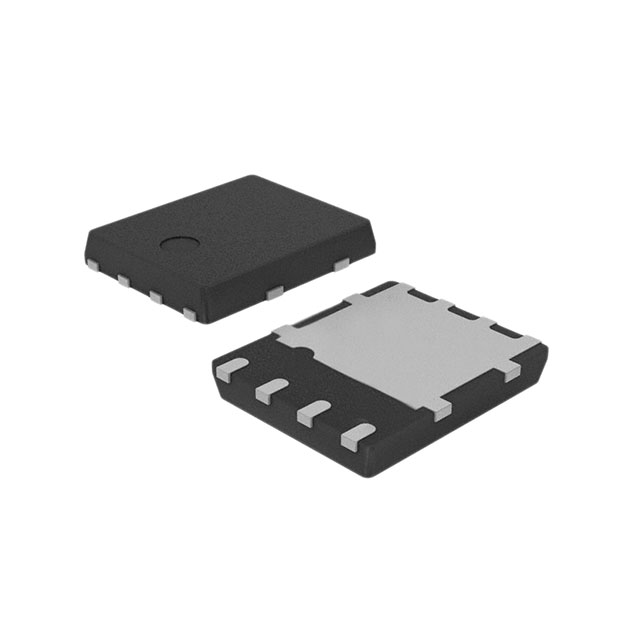

Designed for surface mounting, the STL110N10F7 comes in an 8-PowerVDFN package, also referred to as PowerFlat™ (5x6). Its operating temperature range spans from -55°C to 175°C (TJ), making it suitable for various environmental conditions. The technology employed is standard MOSFET (Metal Oxide).
This component is RoHS3 compliant and has an MSL rating of 1, indicating unlimited moisture sensitivity. It is suitable for applications requiring high current and voltage handling in a compact surface-mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) for the STL110N10F7 is 100V.
The STL110N10F7 has a continuous drain current of 107A.
The maximum on-resistance (Rds On) for the STL110N10F7 is 6mOhm when measured at 10A drain current and 10V gate-source voltage.
The operating temperature range for the STL110N10F7 is -55°C to 175°C (TJ).
The STL110N10F7 is supplied in an 8-PowerVDFN package, also known as PowerFlat™ (5x6).
Yes, the STL110N10F7 is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) for the STL110N10F7 is 1.
