| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,380 pcs
|
2380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Current | |
| Function | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Technology | |
| Voltage |

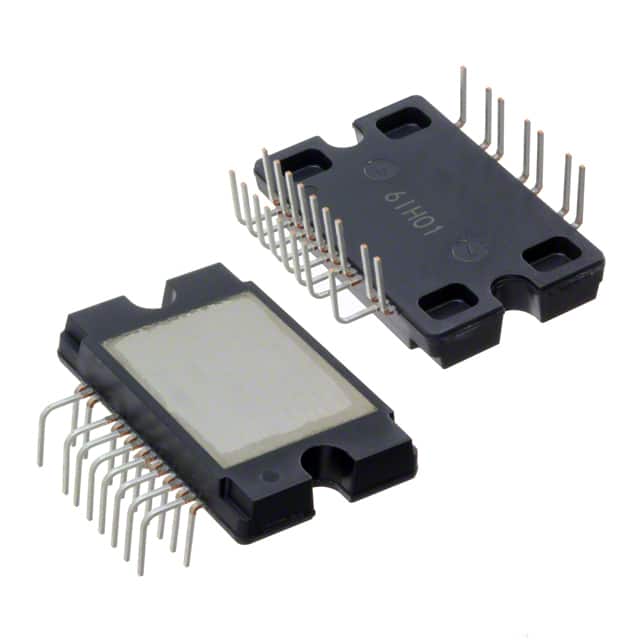

The STK984-190-E from ON Semiconductor is a highly integrated motor driver IC, specifically designed for automotive applications. This device functions as a driver with a fully integrated control and power stage, suitable for Brushless DC (BLDC) motors.
Key electrical specifications include an operating voltage range of 8V to 18V and a substantial current rating of 27A. The technology employed is NMOS, and the output configuration supports three half-bridge stages. The IC is built to withstand a wide range of thermal conditions, with an operating temperature range of -40°C to 175°C (TJ).
Packaged in a 24-DIP Module with dimensions of 29.6x18.2, the STK984-190-E is designed for through-hole mounting. Its robust construction and specifications make it suitable for demanding automotive environments.
This component is classified under Motor Drivers, Controllers within the Power Management PMIC category. It adheres to RoHS3 compliance standards and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8V to 18V.
27A.
-40°C to 175°C (junction).
24-DIP Module (29.6x18.2mm) with through-hole mounting.
Brushless DC (BLDC) motors.
Half Bridge (3) for three-phase control.
NMOS.
