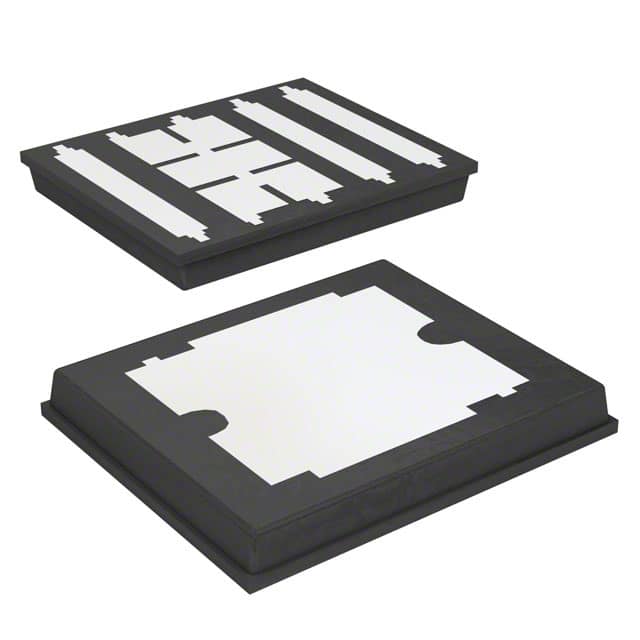

The STK822 is a high-performance N-Channel MOSFET manufactured by STMicroelectronics. It is designed for power switching applications, offering a drain-to-source voltage (Vdss) of 25V and a continuous drain current (Id) of 38A at 25°C ambient temperature.
Key electrical characteristics include a maximum on-resistance (Rds On) of 2.15mOhm at 19A and 10V Vgs, and a gate charge (Qg) of 33nC at 4.5V Vgs. The MOSFET operates within a temperature range of -55°C to 150°C (TJ).
This component utilizes MOSFET (Metal Oxide) technology and is housed in a Surface Mount PolarPak® package, suitable for various electronic designs. The drive voltage ranges from 4.5V to 10V, with a gate-to-source voltage (Vgs) tolerance of ±16V. The input capacitance (Ciss) is rated at 6060pF at 25V Vds.
The STK822 is specified with a maximum power dissipation of 5.2W (Ta) and a gate threshold voltage (Vgs(th)) of 2.5V at 250µA Id. Its RoHS3 compliance and Moisture Sensitivity Level 1 rating indicate suitability for a wide range of manufacturing environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 25V.
The maximum continuous drain current is 38A at 25°C ambient temperature.
The maximum on-resistance is 2.15mOhm at 19A drain current and 10V gate-source voltage.
The operating junction temperature range is -55°C to 150°C.
The STK822 is available in a PolarPak surface mount package.
The maximum gate threshold voltage is 2.5V at a drain current of 250µA.
The maximum input capacitance (Ciss) is 6060pF at 25V drain-source voltage.
