The STK681-210-E is a hybrid IC designed for current control forward/reverse DC motor drivers with brushes. Manufactured by On Semiconductor, this component is built using Power MOSFET technology and operates within a supply voltage range of 10V to 42V.
Key electrical specifications include a maximum output current of 5.2A for DC operation and an 8A peak brake current. It incorporates a 0.08Ω current detection resistor, enabling fixed current control. The device allows for forward, reverse, and brake operations based on external input signals. It can also drive a bipolar stepping motor using its two drivers.
Packaged in a 12-SIP with through-hole mounting, the STK681-210-E has an operating substrate temperature of up to 105°C and a junction temperature up to 150°C. Its applications include office photocopiers and printers, making it suitable for general-purpose DC motor control.
This IC is designed for applications requiring precise current control and motor direction management. Its robust construction and specified operating parameters make it a reliable choice for various industrial and office equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 10V to 42V with signals applied.

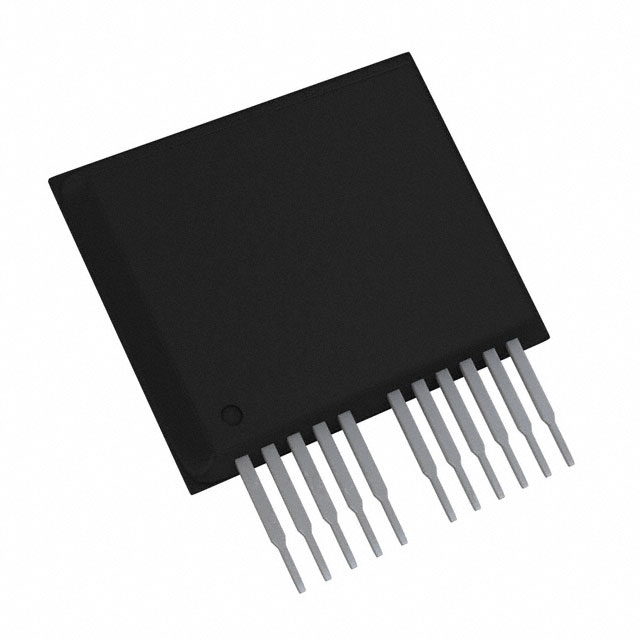

The STK681-210-E is packaged in a 12-SIP through-hole package with 11 leads.
The maximum junction temperature is 150°C, and the maximum operating substrate temperature is 105°C.
The continuous output current is 5.2A, with a peak brake current of 8A under single pulse conditions.
The driver is designed for inductive loads.
The storage temperature range is -40°C to +125°C.
