| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
775 pcs
|
775 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Lead Style | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Step Resolution | |
| Supplier Device Package | |
| Technology | |
| Voltage |

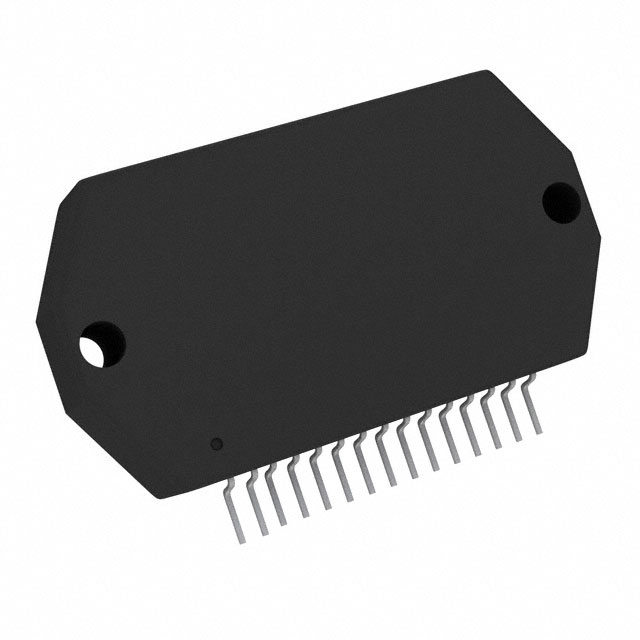

The STK672-070-E from ON Semiconductor is an integrated circuit designed for driving unipolar motors. This device functions as a fully integrated control and power stage, suitable for general-purpose applications.
Key electrical specifications include an operating voltage range of 10V to 45V and a current rating of 1.7A. The motor type supported is unipolar, with step resolutions available at 1, 1/2, 1/4, 1/8, and 1/16.
This motor driver utilizes Power MOSFET technology and operates at temperatures up to 150°C (TJ). It is packaged in a 15-SIP (Single In-line Package) with formed leads and is designed for through-hole mounting.
The interface for this component is parallel. It offers an output configuration of Half Bridge (2), making it a versatile solution for various motor control needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STK672-070-E operates within a voltage range of 10V to 45V.
The maximum operating temperature (junction temperature) for the STK672-070-E is 150 °C.
The STK672-070-E has a current rating of 1.7 A.
The STK672-070-E is designed to drive unipolar motors.
The STK672-070-E supports step resolutions of 1, 1/2, 1/4, 1/8, and 1/16.
The STK672-070-E uses Through Hole mounting.
The STK672-070-E uses a Parallel interface.
